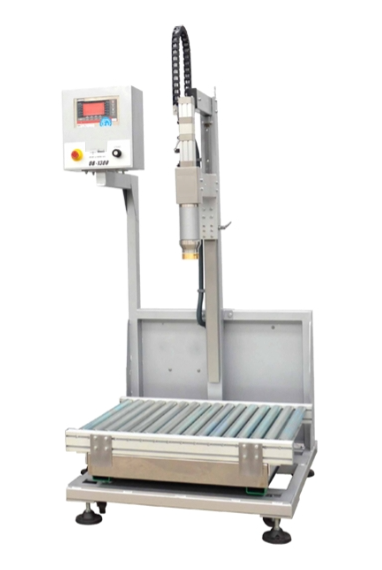

Filling-closing unit for any kind of liquid and paste that flow by their own gravity, for wide-mouth containers.Filling capacity : From 20 kg. to 300 kg.Electro-pneumatic operation unit, controlled by
Gravimetric Glue Filling Systems
±0.05% Accuracy ? Anti-Stringing ? Universal Viscosity Mastery
| Parameter | GG-8100 (Standard) | GG-8200X (ATEX) | GG-8300H (High-Visc) |
|---|---|---|---|
| Capacity | 100ml-20L (±0.05%) | 100ml-20L (±0.08%) | 100ml-20L (±0.06%) |
| Throughput | 45 containers/hour | 40 containers/hour | 35 containers/hour |
| Accuracy | ±0.05% gravimetric | ±0.08% | ±0.06% |
| Viscosity Range | 1-2,000,000 cP | 50-1,500,000 cP | 5,000-3,000,000 cP |
| Filling Technology | Coriolis Mass Flow | ATEX Gear Pump | Heated Screw Auger |
| String Prevention | Laser Cutoff + Vacuum Suction | Electrostatic Dissipation | Air-Knife + Reverse Flow |
| Bubble Control | Vacuum Degassing (-0.9 bar) | Ultrasonic Cavitation | Pressure Cycling |
| Material Contact | 316L SS + PEEK Coated | Hastelloy C276 | Tungsten Carbide + Ceramic |
| Cure Protection | UV-Light Filtered Path | Moisture Control (<50ppm) | N? Blanketing (O?<0.3%) |
| Power | 380V/50Hz, 3.2kW | 24VDC Ex ia | 380V/50Hz, 5.5kW |
| Changeover Time | <60s (Tool-Free) | <70s | <55s |
| Cleanability | CIP (20 min cycle) | Solvent Purge System | Steam-in-Place (SIP) |
| Certifications | CE, ISO 9001 | ATEX Zone 1 | FDA 21 CFR 175.105 |
Performance Metrics:
| Glue Type | String Length | Conventional |
|---|---|---|
| Cyanoacrylate | 0mm | 5-20cm |
| Epoxy | <1mm | 10-30cm |
| Hot Melt | 0mm | 15-50cm |
| Method | Function | Performance |
|---|---|---|
| Vacuum Degassing | -0.9 bar @ 50°C | <0.03% Air Entrainment |
| Pressure Cycling | 5Hz Pulsed Compression | Microbubble Collapse |
| Laminar Flow Path | Reynolds No. <1800 | Zero Turbulence |
Woodworking & Furniture
| Feature | Specification |
|---|---|
| Open Time Control | Temp-Adjusted Viscosity (±1 cP) |
| Gap Filling | Thixotropy Optimization |
| Color Matching | ΔE<0.4 (In-line Spectro) |
Automotive Assembly
Fast-Cure Systems:
| Parameter | Solution |
|---|---|
| Pot Life Tracking | Auto-Flow Acceleration |
| Fixture Time | Precision Dosing Control |
Conductive Adhesives:
| Metric | Precision |
|---|---|
| Resistivity | ±0.3% Ω/sq |
| Silver Flake Dispersion | CV<2% |
Electronics Encapsulation
| Challenge | Solution |
|---|---|
| Void Prevention | Vacuum-Assisted Filling |
| Moisture Control | <10ppm H?O Path (N? Purged) |
| Ionic Contamination | <0.1μg/cm2 Na? Equivalent |
10" HMI with AdhesiveOS?
AI-Driven Features:
Cure Prediction AI:
| Parameter | Action |
|---|---|
| Temp Rise >0.5°C/min | Flow Speed Increase |
| Viscosity Spike >5% | Emergency Purge |
Maintenance Alerts:
| Component | Alert Threshold |
|---|---|
| Screw Wear | Torque >120% Baseline |
| Seal Degradation | Friction >8N |
? ATEX 2014/34/EU (GG-8200X) ? FDA 21 CFR 175.105 ? ISO 9001:2015 ? UL 746C
1. Container Loading → 2. Auto-Positioning → 3. N? Purging (O?<0.5%) → 4. Vacuum Degassing → 5. Gravimetric Filling (±0.05%) → 6. Laser String Cut → 7. Weight Verification → 8. Cap Sealing
Cycle Time: 80 seconds/container
3M Industrial Adhesives Case Study:
*"After 6 months using GG-8100:
Accuracy: ±1.2% → ±0.04%
Stringing Waste: 8% → 0.07%
Output: 25 → 45 containers/hour (+80%)
ROI: 4.8 months"*
