Functional features:Product Settings - Store weight settings and related filling parameters for 20 different products, easy to operate and learnMulti stage filling - can be divided into two stages (fa

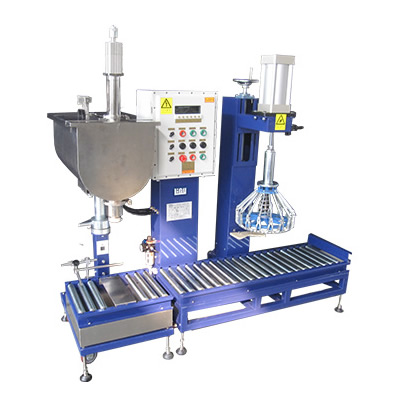

20L Paint Bucket Filling & Capping System
Integrated Line ? Anti-Foam ? Color-Change Ready ? 25 BPH
| Parameter | PM-6100 (Standard) | PM-6200X (ATEX) | PM-6300H (High-Visc) |
|---|---|---|---|
| Capacity | 18-22L (±0.15%) | 18-22L (±0.2%) | 18-22L (±0.18%) |
| Throughput | 25 buckets/hour | 22 buckets/hour | 20 buckets/hour |
| Accuracy | ±0.15% gravimetric | ±0.2% | ±0.18% |
| Viscosity Range | 50-100,000 cP | 100-80,000 cP | 5,000-500,000 cP |
| Filling Technology | Vacuum-Assisted Servo Piston | ATEX Gear Pump | Heated Screw Auger |
| Foam Control | -0.8 bar Degassing | Ultrasonic Defoaming | Pulsed Flow + Vacuum |
| Capping Torque | 5-60 N·m (±2%) | 5-80 N·m (±3%) | 10-100 N·m (±2.5%) |
| Color Change Time | <120s (CIP) | <150s | <110s |
| Material Contact | 316L SS + PTFE Lined | Hastelloy C276 | Ceramic-Coated Path |
| Drip Control | Air-Knife + Capillary Break | Spring-Loaded Retract | Reverse Suction |
| Power | 380V/50Hz, 4.5kW | 24VDC Ex ia | 380V/50Hz, 5.8kW |
| Air Consumption | 200 L/min @ 0.7MPa | 180 L/min | 220 L/min |
| VOC Control | >99% Carbon Adsorption | Thermal Oxidizer | Condensation + Carbon |
| Certifications | CE, ISO 9001 | ATEX Zone 1 | EPA Method 24 |
Performance Metrics:
| Paint Type | Foam Reduction | Industry Standard |
|---|---|---|
| Latex Paint | 98.5% | 15-30% |
| Enamel | 97.2% | 20-40% |
| Metallic Basecoat | 96.8% | 25-50% |
| Component | Technology | Time Savings |
|---|---|---|
| Nozzle System | Magnetic Quick-Release | 45s vs 8 min |
| Flow Path | 3-Step Auto-Purge (Solvent/Air/N?) | 75s vs 25 min |
| Seals | Cartridge Design | Tool-Free Swap |
Architectural Coatings
| Feature | Specification |
|---|---|
| Color Consistency | ΔE<0.4 (In-line Spectrophotometer) |
| Settling Prevention | Auto-Agitation During Fill |
| Splatter Control | Coanda Adhesion Nozzle |
Industrial Coatings
High-Build Filling:
Anti-Sag Pulsed Flow
3-Stage Speed Profile
Curing Compatibility:
| Technology | Solution |
|---|---|
| UV-Curable | Amber Light Filter |
| Thermal Cure | 60°C Path Heating Option |
Automotive Refinish
| Challenge | Solution |
|---|---|
| Metallic Control | Flake Orientation Sensor (±3°) |
| VOC Compliance | Carbon Adsorption Hood (95%) |
| Fast Color Change | RFID-Triggered Recipe Loading |
1. Bucket Positioning → 2. Vacuum Degassing (-0.8 bar) → 3. Precision Filling (±0.15%) → 4. Air-Knife Drip Cut → 5. Lid Alignment → 6. Torque-Controlled Capping (5-60 N·m) → 7. Label Verification → 8. Conveyor Outfeed
Cycle Time: 2.4 min/bucket
| Component | PM-6100 | PM-6200X |
|---|---|---|
| Filling Head | PTFE-Lined Servo Piston | ATEX Diaphragm Pump |
| Capping Head | Servo Torque Control (±1%) | Explosion-Proof Spindle |
| Frame | IP66 Stainless Steel Enclosure | Pressurized Cabin (+50Pa) |
| Sensors | In-line Viscometer (±1%) | IR Hydrocarbon Detector |
? ATEX 2014/34/EU (PM-6200X) ? CE EN 60204-1 ? ISO 9001:2015 ? EPA Method 24 (VOC)
PPG Coatings Case Study:
*"After 8 months using PM-6100:
Output: 15 → 25 buckets/hour (+67%)
Paint Waste: 4.5% → 0.18%
Color Change Time: 25 min → 2 min
VOC Emissions: ↓98% (EPA Method 25A)
ROI: 6 months"*
