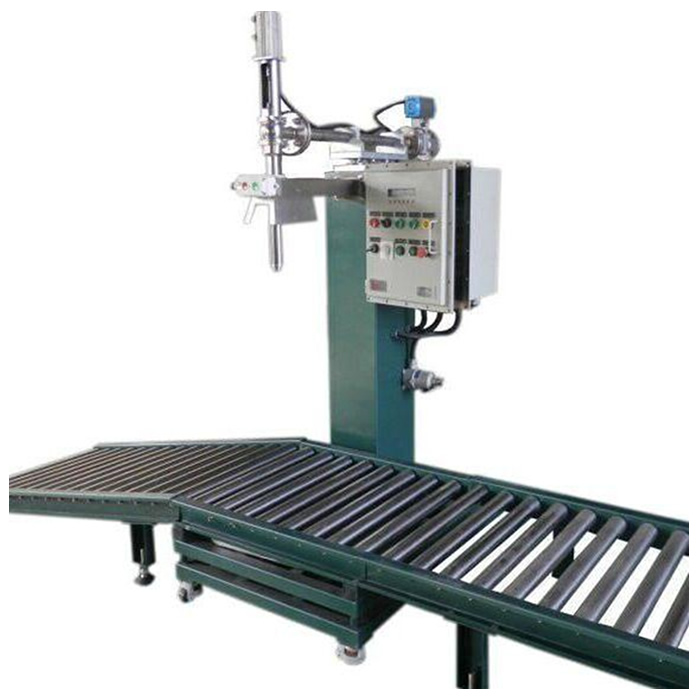

    Drum Oil Drum Filling Machine


    Functional features:˙ Product Settings - Store weight settings and related filling parameters for 20 different products, easy to operate and learn˙ Multi stage filling - can be divided into two stages




    •
                                Brand：
                                glzon
      •

    •
                                Model：
                                GZM
      •
































    OilDrum Pro OD-3000 Series
    Automatic Oil Drum Filling Machine
    Precision. Safety. Industrial Reliability.
    Technical Specifications
    Parameter
    OD-3100 (Standard)
    OD-3200X (ATEX)
    OD-3300H (High-Visc)
    Capacity
    20-220L (±0.2%)
    20-220L (±0.3%)
    20-220L (±0.25%)
    Throughput
    35 drums/hour
    30 drums/hour
    32 drums/hour
    Accuracy
    ±0.2% gravimetric
    ±0.3%
    ±0.25%
    Viscosity Range
    10-100,000 cP
    50-80,000 cP
    500-500,000 cP
    Filling Technology
    Coriolis Mass Flow
    ATEX Gear Pump
    Heated Screw Conveyor
    Material Contact
    316L SS + PTFE
    Hastelloy C276
    Hardox 400 + PEEK Lining
    Explosion Protection
    N/A
    Zone 1 (IIB T4)
    N/A
    Static Control
    <10? Ω (NFPA 77)
    <10? Ω
    <10? Ω
    Overfill Prevention
    Radar + Weight Redundancy
    Same + SIL-2
    Triple Sensor System
    Power
    380V/50Hz, 7.5kW
    24VDC Ex ia
    380V/50Hz, 9.2kW
    N? Consumption
    40 L/min
    50 L/min
    45 L/min
    Cycle Time
    1.7 min/drum
    2.0 min/drum
    1.8 min/drum
    Footprint (L×W×H)
    3500×1800×2500mm
    3800×2000×2700mm
    3600×1900×2600mm
    Core Innovations
    1. TripleShield? Safety System
    Certified Protection:
    • ATEX Zone 1 Compliance (IECEx IEC 60079)
    • Spill Containment: 304 SS drip tray (50L capacity)
    • Emergency Shutdown: <0.3s response (SIL-2)
    2. Viscosity-Adaptive Filling
    Oil Type
    Technology
    Performance
    Light Hydraulic
    High-Flow Mode (200 L/min)
    ±0.15% accuracy
    Gear Oil ISO 680
    Heated Path (60°C±1°C)
    Viscosity stability ±2%
    Grease NLGI 2
    Pulsed Piston Filling
    Zero air inclusion
    Industry Applications
    Lubricant Manufacturing
    Feature
    Specification
    API Certification
    Auto-viscosity compensation
    Additive Dosing
    8-port system (±0.5%)
    MIL-PRF Compliance
    Military spec filling protocols
    Fuel & Petrochemicals
    • Flash point monitoring (>38°C)
    • Conductive filters (<10? Ω)
    • Reid vapor pressure compensation
    Transformer & Dielectric Oils
    Parameter
    Solution
    Moisture Control
    Dehumidified N? blanket
    Particulate
    5μm final filtration
    Dielectric Loss
    Filling under vacuum (-0.8 bar)
    Smart Control System
    10" HMI with PetroOS?
    AI-Driven Safety:
    • Ignition Risk Prevention:
      Risk Factor
      Action
      VOC >20% LEL
      Auto shutdown + N? flood
      Static >10 mJ
      Ionized air injection
    • Predictive Maintenance:
      Component
      Alert Threshold
      Pump Vibration
      >4.5 mm/s → Service required
      Seal Degradation
      Leak >0.1 ml/min → Replace
    Performance Data
    Metric
    Manual Filling
    OD-3100
    Improvement
    Output
    12 drums/hour
    35 drums/hour
    ↑192%
    Oil Loss
    2.8%
    <0.1%
    ↓96%
    VOC Emission
    450 ppm
    <5 ppm
    ↓99%
    Labor Cost
    3 operators
    0.5 FTE
    ↓83%
    Certifications
    ? ATEX 2014/34/EU (OD-3200X)
? API 682 Seal Standard
? ISO 80079-36 Explosive Atmospheres
? OSHA 1910.106 Compliance
? CE EN 60204-1
    Operational Workflow
    1. AGV Drum Loading → 2. Laser Bung Alignment →
3. N? Purging (O?<0.5%) → 4. Mass Flow Filling (±0.2%) →
5. Auto Torque Sealing → 6. Vapor Recovery →
7. Palletizing
    Cycle Time: 1.7 minutes/drum
    SEO Optimization
    Element
    Content
    Title (60 chars)
    Automatic Oil Drum Filler | 35 Drums/H | ±0.2% | ATEX | Shanghai Guangzhi
    Description (150 chars)
    Industrial oil drum filling: 35 drums/hour, ±0.2% accuracy. ATEX Zone 1 certified. N? inerting & VOC capture. Free quote!
    Core Keywords
    1. Automatic Drum Filling Machine
    2. Oil Drum Packing System
    3. ATEX Drum Filler
    4. High-Speed Lubricant Packaging
    Tags
    Lubricant Manufacturing, Fuel Packaging, Transformer Oil, Explosion Proof Filling, Industrial Oils
    Service Package
    Service
    Standard
    Premium
    Installation
    5-day plant commissioning
    Turnkey integration
    Remote Monitoring
    24/7 IIoT diagnostics
    AR-guided troubleshooting
    Spare Parts
    48h global delivery
    On-site critical inventory
    Training
    3-day operator certification
    Custom ERP integration
