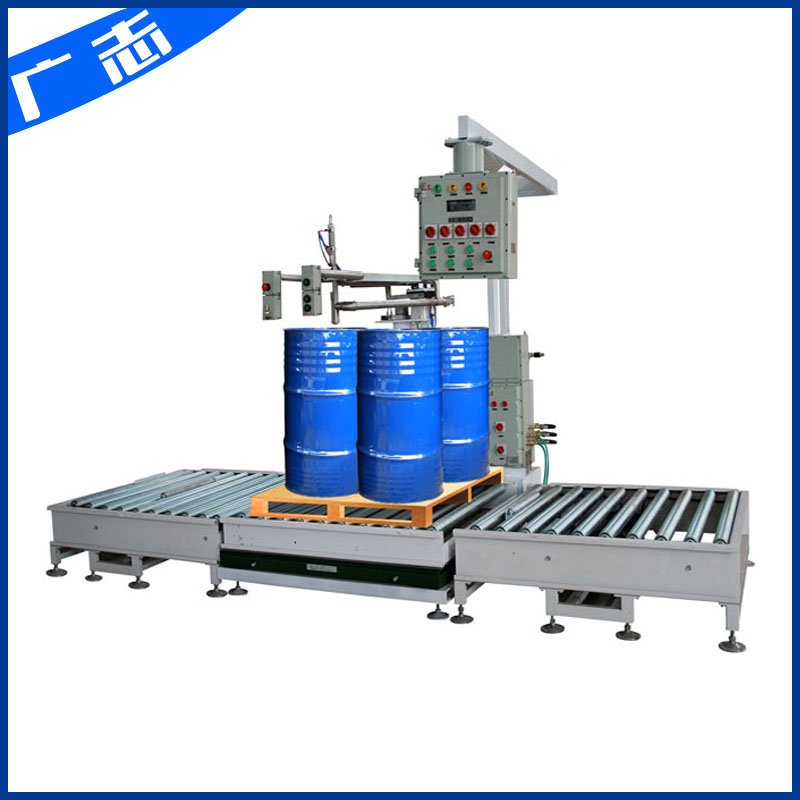

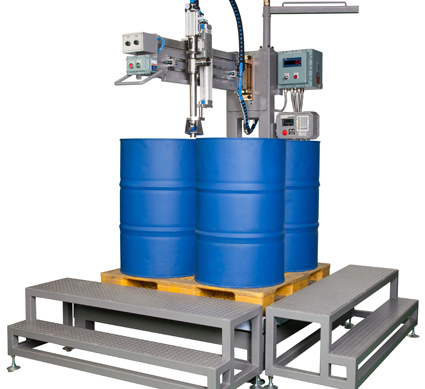

Drum on pallet filling line
4*Drums on pallet, filling one by one, after filling, moved by truck lift or use a conveyor to remove it.
- Brand：
- Model：
Drum on pallet filling line
4*Drums on pallet, filling one by one, after filling, moved by truck lift or use a conveyor to remove it.
Model
GFM-OS
Suitable material
Liquid like coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fineness chemical etc
Weighing form
Filling above level (liquid without foam)
Filling under level (liquid with foam)
Filling capacity
200kg*4 (pallet)
Accuracy
≤ 0.1%
Filling speed
10-12 pallet/hour
Barrel form
Four Drums(one pallet)
Gas power
0.5MPa
Work environment
Temperature ：-20℃～45℃relative humidity：95%（none dew）
voltage
AC 110V/220V, 50/60Hz, 10A
Max power
1KW
Filling mouth material
SUS304/SUS316
Platform size(mm)
1300*1300
Option
Stainless steel 304 conveyor roller

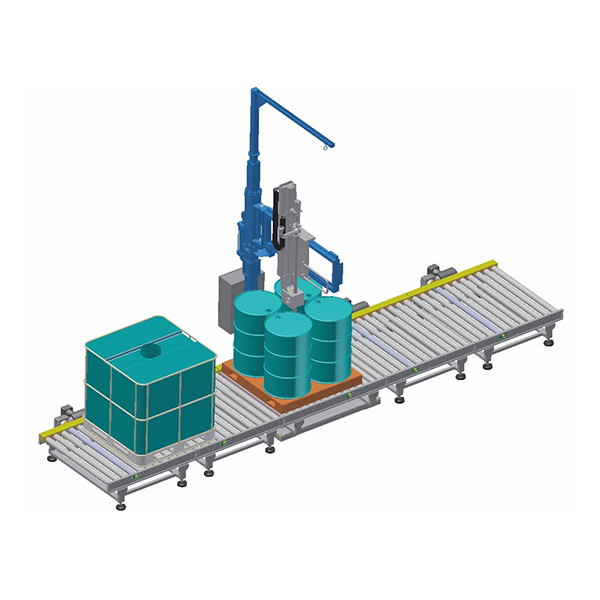

This system optimizes industrial drum filling and material handling by sequentially filling 4 drums securely mounted on a pallet. After filling, the entire pallet is efficiently transported via forklift/truck lift or conveyor systems, minimizing manual handling and maximizing workflow speed. Ideal for chemicals, food, pharmaceuticals, and bulk liquids.
Product Overview
Process Flow:
Pallet Setup: 4 empty drums secured on a reinforced pallet.
Sequential Filling: Automated/semi-automated nozzles fill drums one-by-one to ensure precision.
Post-Filling Handling: Pallet moved via forklift (for short-distance) or conveyor (automated long-distance).
Key Advantages:
? Efficiency: 30–50% faster than individual drum handling.
