New type explosion-proof filling machine for epoxy & polyurethane curing agents. Features liquid surface filling, optional nitrogen protection, and ±3-8g accuracy. EXdiaIIBT4 rated with PTFE seals. Prevent oxidation & splashing—Request a quote!

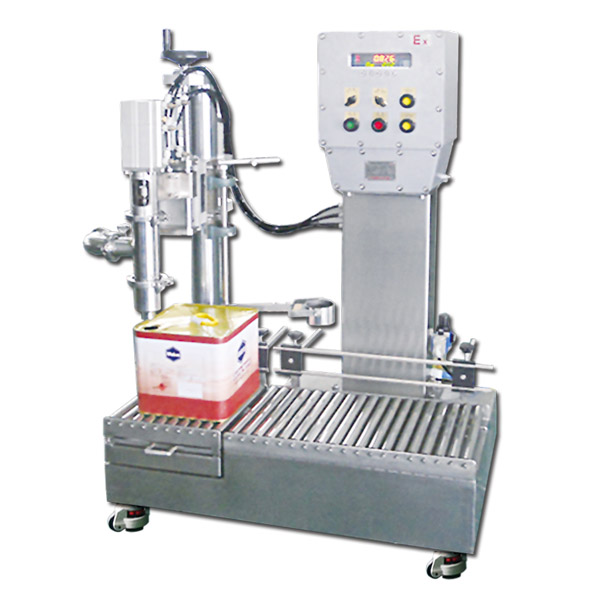

Precise packaging of curing agents (hardeners) is a technical challenge due to their volatile, flammable, and often moisture-sensitive nature. Our New Type Curing Agent Filling Machine is a professional-grade solution designed to eliminate the risks of splashing, oxidation, and inaccurate dosing.
Featuring a specialized liquid surface filling method and optional nitrogen-protected filling, this machine ensures that your product remains stable and your workspace remains clean and safe.
Standard filling machines often cause turbulence and splashing, which leads to messy containers and wasted material. Our system uses a precision-controlled inserted liquid surface filling method. By maintaining the nozzle at the optimal level, we prevent air entrapment and splashing.
For curing agents that are prone to oxidation or volatilization, we offer an optional Nitrogen Purge System. This creates an inert barrier between the chemical and the atmosphere, preserving the purity and shelf-life of your high-performance hardeners.
| Parameter Item | Specification |
| Primary Keyword | New Type Curing Agent Filling Machine |
| Max Weighing Capacity | $15\text{kg}$ |
| Filling Error | $\pm 3\text{-}8\text{g}$ (Precision Accuracy) |
| Minimum Sensitivity | $1\text{g}$ |
| Filling Speed | $90\text{-}120$ barrels / hour (at 5kg) |
| Explosion-proof Rating | EXdiaIIBT4 |
| Filling Method | Insert type, on-liquid surface |
| Material Construction | SUS304 Stainless Steel & PTFE (Teflon) |
| Applicable Containers | $\le \Phi 280 \times \text{h}400\text{mm}$ (Small/Open Mouth) |
| Air Supply | $0.4\text{-}0.8\text{Mpa}$ |
Patented Quick-Disassembly Gun: Designed for rapid, tool-free cleaning. This is essential for preventing curing agents from hardening inside the nozzle between shifts.
Corrosion-Resistant Fluid Path: Utilizing PTFE (Teflon) seals and SUS304 stainless steel, the system is fully resistant to aggressive solvents and chemical additives.
Intelligent Nozzle Protection: "No-Barrel, No-Fill" technology ensures the nozzle will not discharge unless it is correctly positioned, preventing spills and hazardous waste.
Dual-Window PLC Display: Real-time monitoring of target quantity, actual fill weight, and total barrel count for accurate production statistics.
Formula Storage: Store up to 30 sets of unique parameters for different curing agent viscosities and densities.
Positioning: Operator places the container and adjusts nozzle height via hand crank.
Start: Pressing the [Start] button initiates the automatic tare and nozzle descent.
Optional Nitrogen: The system performs a nitrogen purge to isolate the material from oxygen.
Precision Fill: Two-stage (Fast/Slow) filling ensures rapid volume with a high-accuracy finish.
Auto-Lift: Nozzle lifts automatically and waits for the next cycle, keeping the container exterior pristine.
