High-precision IBC filling machine for 1000L tanks and palletized 200L drums. Features ExdiaIIBT4 explosion-proof rating, flexible rocker arm alignment, and $\pm 0.2\text{kg}$ accuracy. Ideal for chemicals & solvents. Request a technical quote!
In the world of bulk liquid logistics, efficiency is measured by how quickly and safely you can fill large containers. Our IBC Filling Machine with a specialized Rocker Arm design is engineered to handle the most demanding industrial tasks. Designed to fill four 200L drums on a single pallet or a 1000L IBC tank, this system eliminates the need for manual pallet stacking and heavy lifting, streamlining your entire packaging workflow.

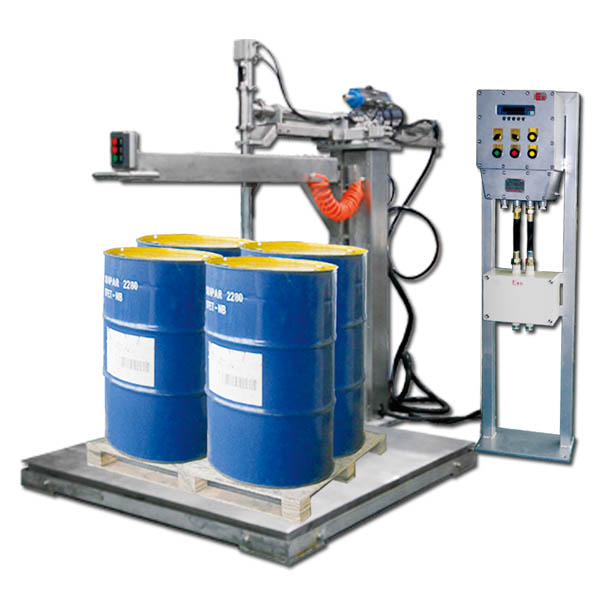

The standout feature of this Palletized Drum Filling Machine is its heavy-duty rocker arm. The filling gun is mounted on a precision-engineered swivel device that allows the operator to manually extend and rotate the nozzle forward, backward, left, and right. This allows for perfect alignment with four different barrel mouths on one pallet without ever moving the containers.
Explosion-Proof Safety (ExdiaIIBT4): Safety is non-negotiable. The entire IBC Filling Machine system, including the weighing display and sensors, is explosion-proof certified, making it ideal for solvents, fuels, and flammable chemicals.
Insertion-Type Filling: To prevent splashing and protect your outer packaging, the filling gun uses an insertion method, ensuring the liquid is delivered cleanly into the container.
Dual-Stage Quantitative Accuracy: Using a two-stage (Fast/Slow) filling method, the system achieves a remarkable filling error of only $\pm 0.2\text{-}0.3\text{kg}$, even for volumes up to $1500\text{kg}$.
Smart Safety Interlocks: The system includes a "No-Barrel, No-Fill" sensor. If the gun head is not correctly inserted into the barrel mouth, it will automatically lift and refuse to discharge material.
This IBC Filling Machine is built for high-capacity, high-accuracy industrial performance.
| Feature | Technical Specification |
| Primary Keyword | IBC Filling Machine |
| Max Weighing Capacity | $1500\text{kg}$ |
| Minimum Sensing | $0.5\text{kg}$ |
| Filling Range | $10 - 1000\text{kg}$ (IBC & 200L Drums) |
| Filling Error | $\pm 0.2 - 0.3\text{kg}$ |
| Explosion-Proof Rating | ExdiaIIBT4 |
| Filling Method | Insertion / Submerged Type |
| Operating Temperature | $-10^\circ\text{C}$ to $50^\circ\text{C}$ |
| Power Supply | AC220V / 50Hz |
| Air Source | $0.8\text{Mpa}$ |
| Control System | PLC-based Two-Stage Automatic Filling |
| Structure Material | SUS304 / Full Stainless Steel (Optional) |
Our Automatic IBC Filling Machine is designed to be operated by a single person with minimal training:
Positioning: The operator places a pallet with four empty 200L drums (or one 1000L IBC) onto the $1500\text{kg}$ scale platform.
Alignment: Using the rocker arm, the operator aligns the gun head with the first barrel mouth.
One-Click Fill: Pressing [Start] triggers the automatic sequence: the gun descends $\rightarrow$ system tares to zero $\rightarrow$ dual-speed filling begins.
Automatic Lift: Once the target weight is reached, the gun lifts automatically. The operator then moves the rocker arm to the next barrel.
Completion: Once all containers are filled, the entire pallet is moved off the scale via the integrated roller path or forklift.
Whether you are looking for a Standard, Explosion-Proof, or Full Stainless Steel structure, our IBC Filling Machine can be customized to your site. We offer optional peripherals such as feed pumps, filtration systems, conveyors, and pneumatic cap screwers to build a fully integrated production line.
