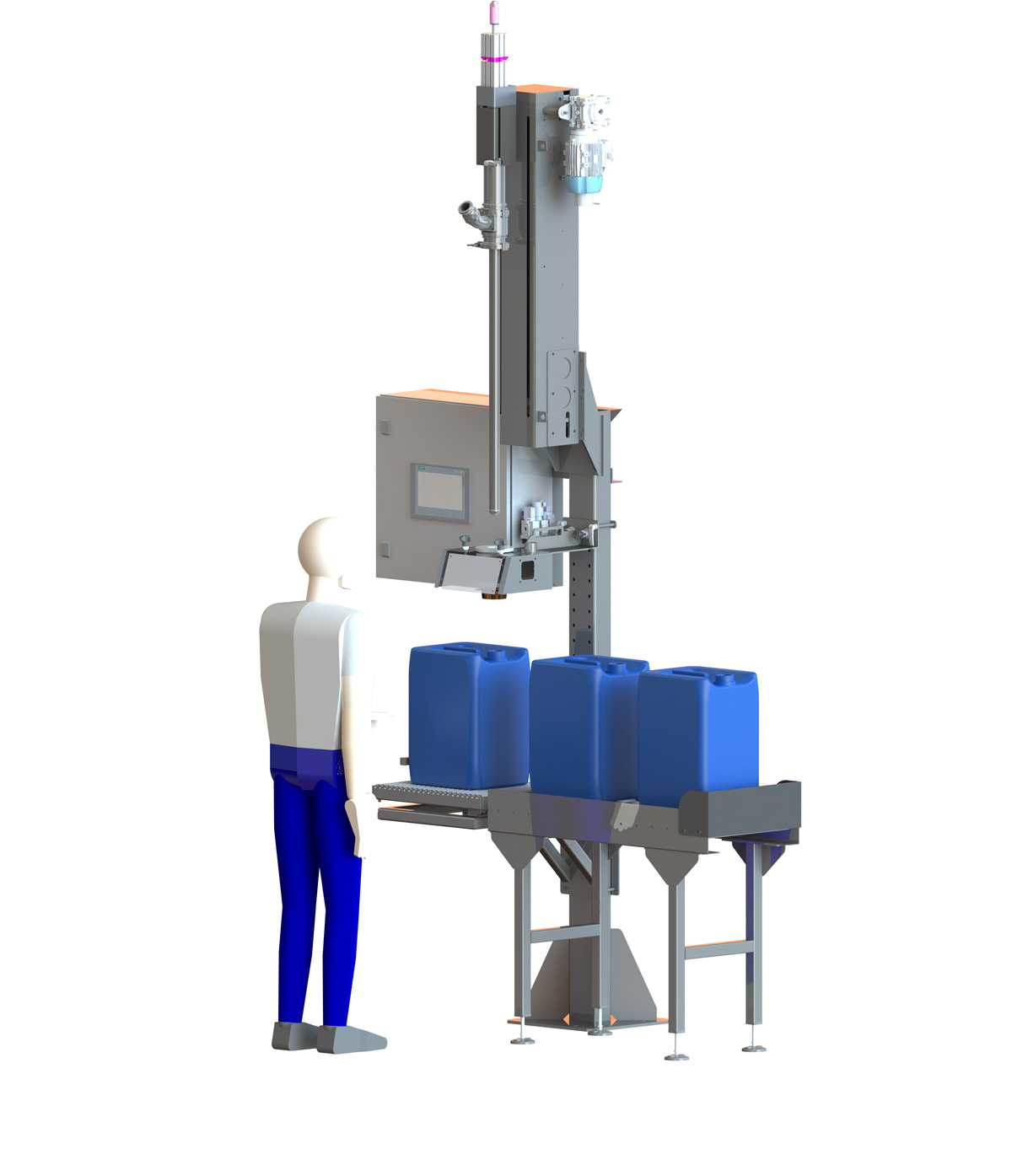

The canister filling machine is a semiautomatic equipment for filling all types of liquid and viscous products. It is the best solution for jerrycans, canisters and pails from 1 to 30 liters. The fill
Precision Canister Filling System
±0.1% Accuracy ? Multi-Viscosity ? Contamination-Free
| Parameter | CP-8100 (Standard) | CP-8200X (ATEX) | CP-8300P (Pharma Grade) |
|---|---|---|---|
| Capacity | 1-20L (±0.1%) | 1-20L (±0.15%) | 1-20L (±0.08%) |
| Throughput | 55 cans/hour | 50 cans/hour | 48 cans/hour |
| Accuracy | ±0.1% gravimetric | ±0.15% | ±0.08% |
| Viscosity Range | 5-500,000 cP | 10-300,000 cP | 1-50,000 cP |
| Filling Technology | Servo Piston + Mass Flow | ATEX Diaphragm Pump | Peristaltic Pump (PFA Lined) |
| Material Contact | 316L SS + PTFE | Hastelloy C276 | 316L EP (Ra<0.4μm) |
| Drip Control | Air-Knife + Vacuum Suction | Spring-Loaded Nozzle | Capillary Break Valve |
| Changeover Time | <45s (Tool-Free) | <50s | <40s |
| Sealing System | Torque-Controlled Cap (5-20 N·m) | Same + Vapor Barrier | Induction Sealing |
| Residual Liquid | <0.05ml | <0.03ml | <0.01ml |
| Power | 220V/50Hz, 1.8kW | 24VDC Ex ia | 220V/50Hz, 1.5kW |
| Cleanability | CIP Ready (30 min) | ATEX Washdown | SIP/CIP Validated |
| Footprint (L×W×H) | 1800×1200×2200mm | 2000×1400×2400mm | 1900×1300×2300mm |
| Certifications | CE, ISO 9001 | ATEX Zone 1 | FDA 21 CFR 211 |
Performance Guarantee:
Drip-Free Seal: Kalrez?6375 + PTFE Dual Seal
Static Control: <10? Ω Surface Resistivity
| Viscosity | Filling Mode | Flow Rate |
|---|---|---|
| <1,000 cP | High-Speed Jet | 1.5L/sec |
| 1k-50k cP | Pulsed Piston | 0.8L/sec |
| >50k cP | Heated Screw Auger | 0.4L/sec |
Chemicals & Solvents
| Feature | Specification |
|---|---|
| ATEX Zone 1 | Pressurized Cabinets (+50Pa) |
| VOC Control | >99% Carbon Adsorption |
| Corrosion Resistance | Zirconium Flow Path |
Food & Pharma
EHEDG-Validated Design (EL Class I)
3D Surface Scan (Ra<0.4μm)
Allergen Control Protocols
Adhesives & Sealants
| Challenge | Solution |
|---|---|
| Stringing | Laser Cutoff + Vacuum Suction |
| Settling | Ultrasonic Agitation |
| Skin Formation | N? Blanketing (O?<0.3%) |
10" HMI with CanisterOS?
AI-Driven Features:
Anomaly Detection:
| Parameter | Action |
|---|---|
| Fill Deviation >0.2% | Auto Re-Calibration |
| Seal Torque Variance | Tool Servo Adjustment |
OEE Dashboard:
| Metric | Real-Time Tracking |
|---|---|
| Uptime | 99.2% |
| Material Usage | ±0.15% |
? ATEX 2014/34/EU (CP-8200X) ? FDA 21 CFR 117 ? ISO 9001:2015 ? CE EN 60204-1
1. AGV Canister Loading → 2. Laser Positioning → 3. N? Purging (O?<0.5%) → 4. Precision Filling (±0.1%) → 5. Vacuum Drip Cut → 6. Torque-Controlled Sealing → 7. Weight Verification → 8. Labeling
Cycle Time: 65 seconds/canister
APPLICABLE BARREL TYPE
