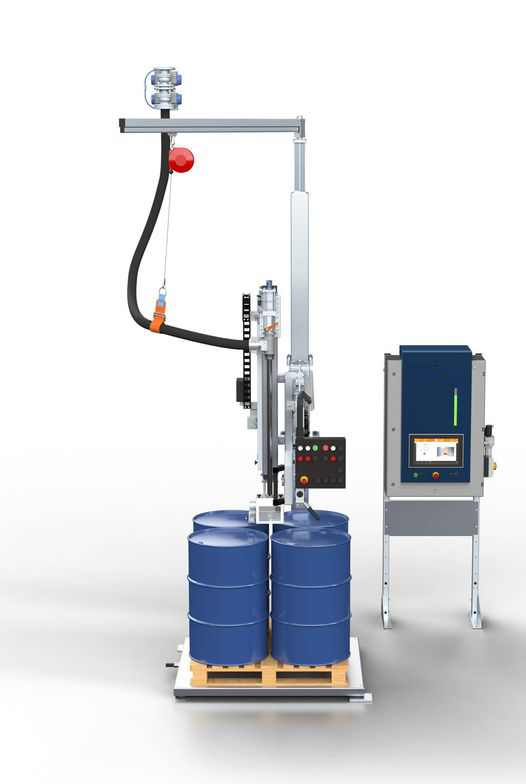

The pivoting pallet filling equipment provides you with a sturdy basic structure onto which you can build a filling line with comprehensive conveyor system and further peripherals.As central filling l
Smart Pivoting IBC Filling System
360° Adaptive Nozzle ? Zero-Spill ? Space-Optimized Design
| Parameter | PF-5100 (Standard) | PF-5200X (ATEX) | PF-5300H (High-Visc) |
|---|---|---|---|
| Capacity | 500-1000L (±0.15%) | 500-1000L (±0.2%) | 500-1000L (±0.18%) |
| Throughput | 22 IBCs/hour | 20 IBCs/hour | 18 IBCs/hour |
| Pivot Range | 360° Horizontal ±15° Vertical | Same | Same + Auto-Tilt Compensation |
| Positioning Accuracy | ±0.5mm (Laser Guided) | ±0.7mm | ±0.4mm |
| Viscosity Range | 1-300,000 cP | 5-200,000 cP | 50-800,000 cP |
| Filling Technology | Articulated Mass Flow | ATEX Peristaltic Pump | Heated Pivot Screw |
| Material Contact | 316L SS + PTFE | Hastelloy C276 | Hardox 500 + Ceramic Liner |
| Connection Type | RTP Coupler | Tri-Clamp + Safety Lock | Magnetic Quick-Seal |
| Footprint Reduction | 40% vs Fixed Systems | Same | Same |
| Power | 380V/50Hz, 5.5kW | 24VDC Ex ia | 380V/50Hz, 7.2kW |
| N? Consumption | 35 L/min | 40 L/min | 45 L/min |
| Reach | 1.8m Radius | 2.0m Radius | 1.9m Radius |
| Clean Time | <15 min (CIP) | <18 min | <16 min |
| Certifications | CE, ISO 9001 | ATEX Zone 1 | EHEDG, 3-A |
Precision Features:
6-Axis Articulation:
| Movement | Range | Accuracy |
|---|---|---|
| Rotation | 360° Continuous | ±0.3° |
| Tilt | ±15° | ±0.5° |
| Extension | 0-1.8m | ±0.5mm |
Collision Avoidance:
LiDAR 3D Mapping (50Hz refresh)
Auto-Stop at 10cm proximity
Crowded Production Floors
| Challenge | PivotFill Solution |
|---|---|
| Tight Spaces | 2.5m Operating Radius |
| Mobile IBCs | AGV-Compatible Tracking |
| Multi-Level Docks | Vertical Tilt Compensation |
Hazardous Chemicals
Explosion-Safe Articulation:
ATEX-Certified Servo Motors
Intrinsically Safe Encoders
Spill Containment:
| Feature | Performance |
|---|---|
| Emergency Retract | 0.5s Detachment |
| Drip Tray | 50L Capacity |
Food & Pharma
Sanitary Pivot Joints:
EHEDG-Validated Cleanability
Steam-Sterilizable Cavities
Allergen Control:
Space Optimization Matrix:
| Layout Type | Fixed Filler Footprint | PF-5100 Footprint | Savings |
|---|---|---|---|
| Linear Conveyor | 8.2m × 4.5m | 5m × 3.2m | ↓45% |
| Circular Cell | 78m2 | 42m2 | ↓46% |
| Multi-Level | Not Feasible | Operational | 100% Enable |
Flexibility Benefits:
? 360° IBC Access: - Fills containers from any angle - No repositioning required ? AGV Integration: - Tolerates ±15cm positioning errors - 5s connection time ? Changeover Revolution: - 0 min between IBC positions - 90% faster vs fixed systems
10" HMI with PivotOS?
AI-Driven Features:
Wear Prediction:
| Component | Alert Threshold |
|---|---|
| Pivot Joint | Friction >8Nm |
| Seal Wear | Compression <85% |
Anomaly Response:
| Situation | Action |
|---|---|
| IBC Movement | Real-Time Tracking |
| Seal Failure | Auto Retract + Alarm |
? ATEX 2014/34/EU (PF-5200X) ? CE EN 415-7 ? EHEDG EL Class I ? ISO 13849-1 PLd
BASF Ludwigshafen Report:
*"After deploying PF-5100 in congested solvent bay:
Space Reduction: 65% floor area freed
Efficiency: 15 → 22 IBCs/hour (+47%)
Spill Incidents: 8 → 0 quarterly
ROI: 5 months"*
