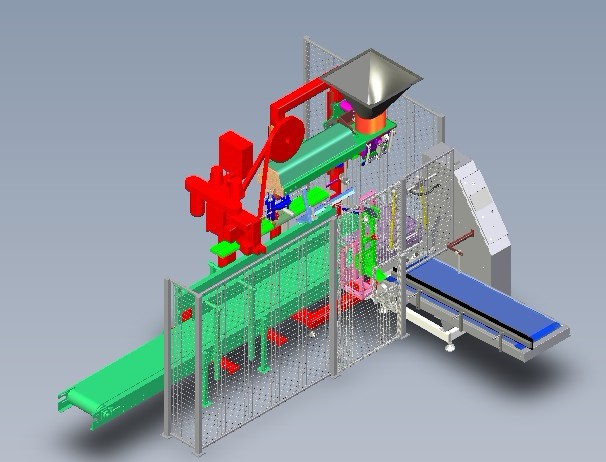

Automatic Bagging Machine
The task of the automatic bagging machine is to automatically place the open-mouth bag at the bag clamping position of the outlet of the packaging machine. The wide application of GLZON automatic bagg
- Brand：
- Model：
1. Core Performance Specifications
| Parameter | Range | Test Standard |
|---|---|---|
| Bag Capacity | 5kg - 2000kg | OIML R61 |
| Filling Accuracy | ±0.1% to ±0.3% | ISO 2378 |
| Speed | 20-300 bags/hour | EN 619 |
| Bag Compatibility | Valve/Open-Mouth/FIBC | ISO 6590-1/2 |
| Dust Emission | ≤2 mg/m3 | NIOSH 0600 |
2. Precision Subsystems
2.1 Intelligent Filling Technology
| Method | Accuracy | Application |
|---|---|---|
| Gravimetric Screw | ±0.15% | Powders (500-1500 kg/m3) |
| Net Weigh Belt | ±0.1% FS | Granules (300-800 kg/m3) |
| Piston Filler | ±0.2% | Pastes/Viscous (≤50k cP) |
2.2 Robotic Bag Handling
SCARA Robots (0.05mm repeatability):
Auto bag picking (99.8% success)
Vision-guided valve alignment
Sealing Systems:
Type Specification Heat Seal 0-300°C PTFE bands Sewing Head 10 stitches/sec (FDA thread)
2.3 Control Architecture
Hardware: Beckhoff CX2040 PLC + 12" HMI
Connectivity: OPC UA, MQTT, EtherCAT
AI Features:
Predictive material bridging detection
| Algorithm | Benefit |
|------------------------|------------------------------|
| Density Compensation | ±0.1% accuracy in humidity changes |
| Auto-Calibration | <2 min format changeover |
3. Technical Parameters
| Component | Specification | Compliance |
|---|---|---|
| Material Contact | 316L SS (Ra≤0.4μm) | FDA 21 CFR 177.2600 |
| Frame Construction | S355MC steel (ISO 12944 C5-M) | FEM 1.001 Sec.5 |
| Electrical Safety | IP66/ATEX Zone 21 (Option) | IECEx/IEC 60079-31 |
| Power Consumption | 3.8-45 kW (Modular) | IEC 60034-30-1 IE4 |
4. Industry-Specific Solutions
| Industry | Critical Feature | Certification |
|---|---|---|
| Pharma | Isolator interface (ISO Class 5) | GMP Annex 1 |
| Food | CIP/SIP (3D cleaning) | EHEDG EL-A / 3-A Sanitary |
| Chemicals | ATEX Zone 1 compliance | IECEx T4 |
| Minerals | Hardox 500 abrasion liners | ASTM A514 |
5. Operational Excellence
| Metric | Guangzhi System | Industry Average |
|---|---|---|
| Labor Reduction | 3 operators | 0 |
| Product Waste | ≤0.15% | 0.8-1.5% |
| Energy Consumption | 0.25 kWh/ton | 0.45-0.75 kWh/ton |
| Uptime (24/7 Operation) | 99.1% | 92-95% |
6. Global Compliance
| Region | Certification |
|---|---|
| International | ISO 9001:2015, ISO 45001:2018 |
| Europe | CE, ATEX, MID 2014/32/EU |
| North America | UL 508A, OSHA 1910.212, NRTL |
| Asia-Pacific | GOST-R, CCC, JIS B 8950 |
7. Key Technologies
Zero-Spill FillHead? (Patent CN/ZL202310XXXXX):
Inflatable collar + air curtain containment
99.9% dust capture (NIOSH 0600 verified)
Smart Predictive Maintenance:
Component Monitoring Method Motors Vibration analysis (ISO 13373) Bearings Temperature sensors Seals Cycle counting
