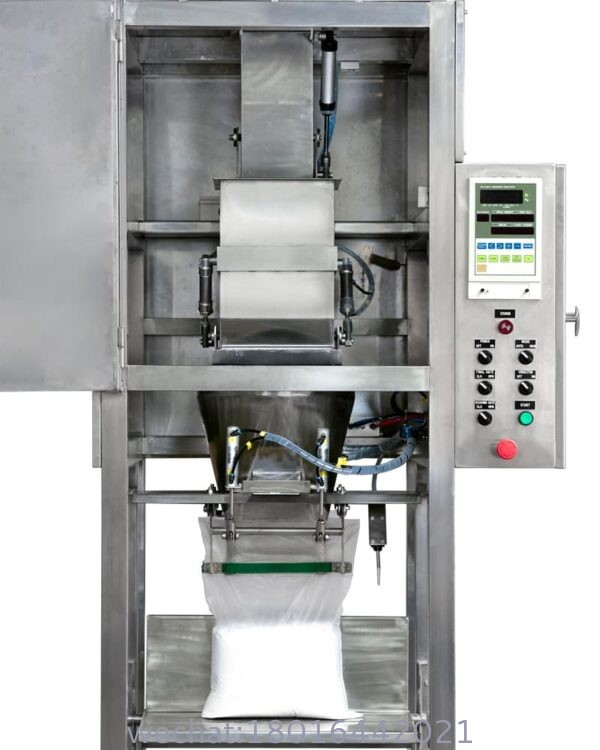

Semi-auto small bag filling machine for packing free fall granulated products such as rice, beans, resins and any rapidly flow products.Filling range 5~10kg bags.Adjustable Bag support platform Gravit
| Parameter | SBN-10 | SBN-25 | Test Standard |
|---|---|---|---|
| Bag Capacity | 5-10 kg | 10-25 kg | OIML R61 |
| Accuracy | ±0.2% | ±0.15% | ISO 2378 |
| Max. Speed | 120 bags/h | 100 bags/h | EN 619 |
| Bag Width | 150-350 mm | 200-400 mm | ISO 6590-1 |
| Dust Emission | ≤2 mg/m3 | ≤1.5 mg/m3 | NIOSH 0600 |
2.1 Precision Weighing System
Multi-Head Weigher (Optional):
10-14 weigh buckets
±0.5g resolution
Loss-in-Weight Feeder:
Servo-driven auger (?50-100mm)
| Material | Accuracy |
|--------------------|--------------|
| Free-flowing | ±0.1% |
| Cohesive powders | ±0.3% |
2.2 Automated Bag Handling
Robotic Bag Placer:
SCARA robot (0.1mm repeatability)
Vacuum cup array (6-zone control)
Sealing System:
| Type | Specification |
|---|---|
| Heat seal | 0-300°C PTFE bands |
| Sewing | 5 stitches/sec (FDA thread) |
2.3 Intelligent Control
PLC: Beckhoff CX2040
HMI: 10" capacitive touchscreen
Connectivity: OPC UA, MQTT
| Component | Specification | Compliance |
|---|---|---|
| Material contact parts | 316L SS (Ra≤0.4μm) | FDA 21 CFR 177.2600 |
| Frame | Aluminum profile (ISO 6362) | GMP Annex 1 |
| Electrical safety | IP65 (NEMA 4) | IEC 60529 |
| Power consumption | 3.8 kW (230V±10%, 50/60Hz) | IEC 60034-30 |
| Industry | Critical Feature | Certification |
|---|---|---|
| Pharma | Isolator compatibility | GMP Annex 1 |
| Food | CIP-ready (IP69K) | EHEDG EL-A |
| Chemicals | ATEX Zone 22 compliance | IECEx T4 |
| Additives | Moisture control (<0.5% RH) | USP <922> |
| Model | Footprint (L×W) | Height | Weight |
|---|---|---|---|
| SBN-10 | 1800×900 mm | 2200 mm | 850 kg |
| SBN-25 | 2200×1100 mm | 2400 mm | 1100 kg |
Modular Expansion:
Integrated checkweigher
Date coder attachment
| Metric | SBN Series | Manual Packing |
|---|---|---|
| Labor requirement | 0.5 operator | 3 operators |
| Product waste | ≤0.2% | 1.5-3% |
| Changeover time | <3 min | 30 min |
| ROI period | <14 months | N/A |
Safety: ISO 13849-1 PL d
Explosive Areas: ATEX II 3D
Weighing: MID Class Y(b)
Food Safety: ISO 22000, 3-A Sanitary
