GZM stands for Pneumatic Valve Packaging Equipment. Initially developed 25 years ago, the design has benefited from continuous innovation, ensuring GLZON offers the most advanced models yet seen in th
| Parameter | Standard Model | High-Capacity Model | Test Standard |
|---|---|---|---|
| Bag Capacity | 10-50 kg | 25-100 kg | OIML R61 |
| Filling Accuracy | ±0.2% | ±0.15% | ISO 2378 |
| Max. Speed | 240 bags/h | 180 bags/h | EN 619 |
| Bag Size Compatibility | 300-600 mm (W) | 400-800 mm (W) | ISO 6590-1 |
| Dust Emission | ≤2.0 mg/m3 | ≤1.5 mg/m3 | NIOSH 0600 |

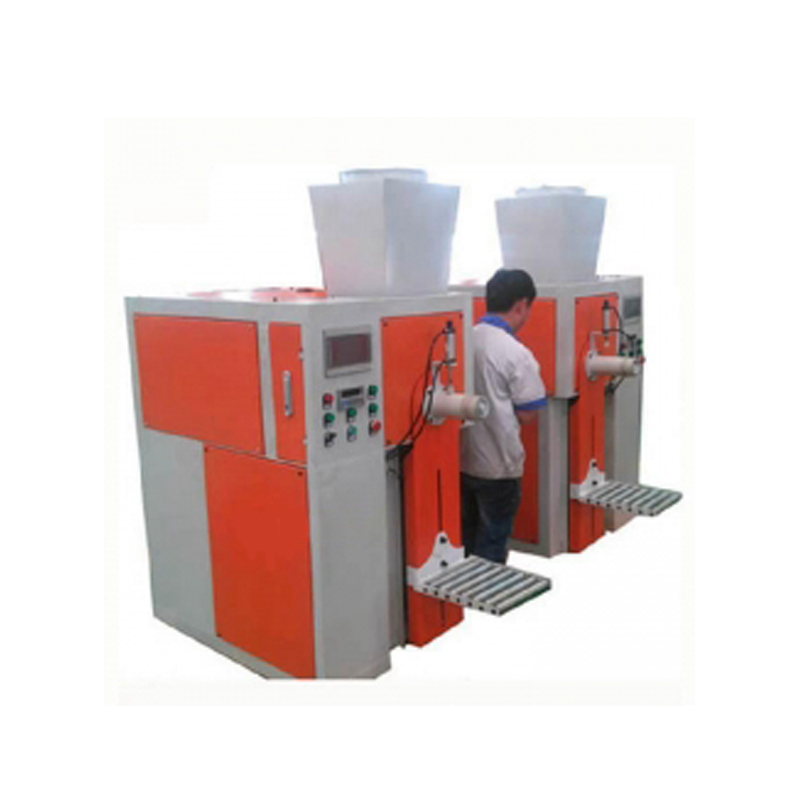

ology2.1 Integrated Bag Handling
Automatic Bag Feeding: Robotic suction cup system (99.5% pick success rate)
Valve Positioning: Laser alignment sensor (±0.3 mm)
Sealing System: Pneumatic inflatable seal (0.6 MPa, EPDM material)
2.2 Precision Filling System
Dual-Stage Weighing:
Primary: Loss-in-weight feeder (95% fill volume)
Secondary: Gravimetric dosing (±0.1% accuracy)
Anti-Segregation: Variable pitch auger (200-500 rpm)
2.3 Control System
PLC: Siemens S7-1500 with HMI 15" touch panel
Auto-Calibration: Pressure/temperature compensation
Remote Monitoring: OPC UA interface (ISO 20691)
| Component | Specification | Compliance |
|---|---|---|
| Material contact parts | 316L SS (Ra≤0.4μm) | FDA 21 CFR 177.2600 |
| Frame construction | S355MC steel (ISO 12944 C5-M) | |
| Electrical safety | SIL 2 (IEC 61508) | |
| Noise level | ≤68 dB(A) @ 1m | ISO 4871:2019 |
| Industry | Technical Solution | Certification |
|---|---|---|
| Chemicals | Conductive grounding (10? Ω) | ATEX II 2D/3D |
| Food | CIP washdown (IP69K) | EHEDG Type EL-A |
| Minerals | Tungsten carbide liners (HRC 70) | ISO 21873-1 |
| Pharma | Isolator compatibility (ISO 14644) | GMP Annex 1 |
| Metric | GZ-AV200 | Conventional Systems |
|---|---|---|
| Labor requirement | 0 operators | 2-3 operators |
| Bag rejection rate | ≤0.3% | 2-5% |
| Changeover time | <3 min | 30-45 min |
| Energy consumption | 0.25 kWh/ton | 0.45-0.60 kWh/ton |
Safety: ISO 13849-1 PL d, ANSI/ISA 84.01
Explosive Atmospheres: ATEX 2014/34/EU, IECEx
Weighing Accuracy: MID 2014/32/EU Class Y(b)
Quality: ISO 9001:2015, ISO 45001
