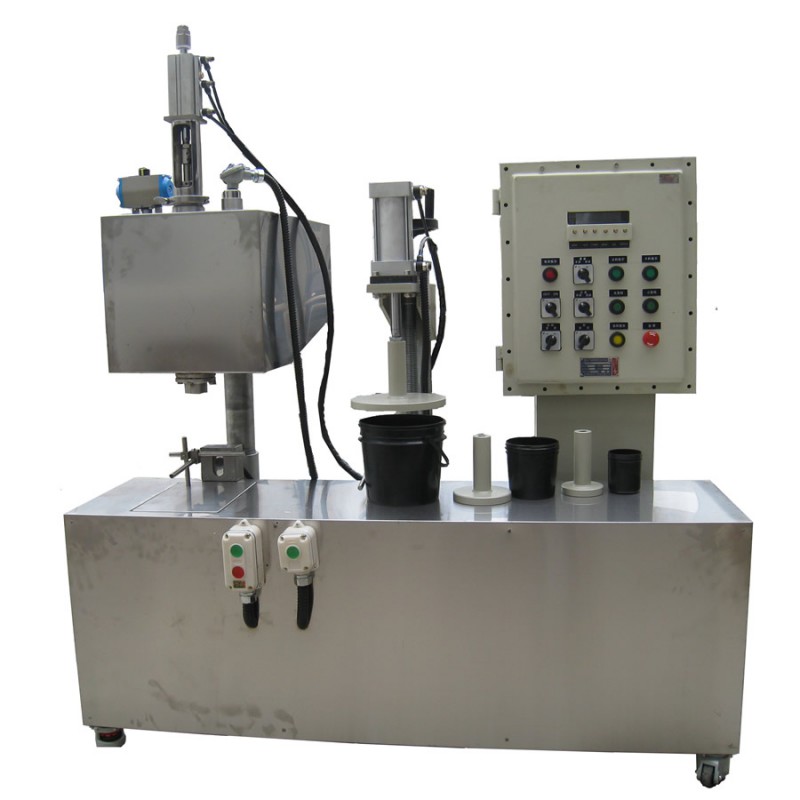

5L liquid filling machine
Industrial 5L liquid filler achieves ±0.2% accuracy at 60 fills/hour. Handles oils/chemicals/solvents with auto viscosity compensation. CE/FDA compliant.
- Brand： glzon
- Model： GZM_10L
Product Essence: Precision Engineered for Industrial Fluids
Shanghai Guangzhi’s 5L Liquid Filler delivers ±0.2% volumetric accuracy for oils, solvents, detergents, and food-grade liquids (1-50,000 cP). Featuring servo-piston dosing, viscosity-adaptive flow control, and drip-free nozzles, it achieves 60 fills/hour while reducing giveaway to <0.3% – ideal for lubricant blending, chemical packaging, and food processing.
Core Technology Highlights
1. Intelligent Flow Control
| System | Technical Advantage |
|---|---|
| Servo-Driven Piston | ±0.05ml repeatability |
| Viscosity Compensation | Auto-adjusts for 1-50,000 cP fluids |
| Vacuum Degassing | Reduces foam by 95% |
| Density Correction | ±0.1% SG adjustment |
2. Zero-Waste Design
Anti-Drip System:
PTFE-coated retractable nozzles
Air knife cutoff (residual ≤0.1ml)
Quick-Change Tooling:
Changeover Time Container height <15s (300-600mm) Nozzle size (?10-50mm) <30s
3. Industrial Resilience
Material Options:
Application Wetted Materials Acids/Alkalis 316L SS + PTFE seals Food-Grade Oils 316L + FDA UHMW-PE Solvents Hastelloy C276 option Rugged Construction:
IP54 stainless steel enclosure
50,000h MTBF critical components
Technical Specifications
| Parameter | Standard Model | Food-Grade Model | ATEX Model |
|---|---|---|---|
| Accuracy | ±0.2% | ±0.15% | ±0.25% |
| Throughput | 60 fills/hour | 55 fills/hour | 50 fills/hour |
| Viscosity Range | 1-50,000 cP | 5-30,000 cP | 10-100,000 cP |
| Filling Range | 0.5-5L | 0.5-5L | 0.5-5L |
| Power | 220V/50Hz, 1.8kW | 220V/50Hz, 2.2kW | 24VDC intrinsic safe |
| Air Consumption | 80 L/min @ 0.6MPa | 90 L/min @ 0.6MPa | 70 L/min @ 0.6MPa |
| Material Contact | 304 SS + PTFE | 316L + EPDM | 316L + Kalrez? |
| Cleanability | Manual wipe-down | CIP/SIP ready | Solvent flush |
| Footprint (L×W×H) | 1500×800×1800mm | 1600×800×1900mm | 1700×900×2000mm |
Industry-Specific Solutions
Lubricant & Grease Blending
Heated flow path (80°C) for high-viscosity oils
Anti-foam pulsed filling
Chemical Solvents
Vapor recovery hood (≥95% capture)
Static-dissipative components (<10? Ω)
Food & Edible Oils
USDA-compliant materials
Allergen purge mode
Pharmaceuticals
GMP upgrade with SIP capability
21 CFR Part 11 data logging
Smart Control System
7" HMI with Recipe Cloud
Key Features:
Formula Library: 50+ preset recipes
Predictive Maintenance:
Seal wear alerts
Piston drift compensation
Data Export:
CSV batch reports
OPC UA to MES/ERP
Operational Impact
Automotive Lubricant Plant:
Reduced giveaway from 1.8% to 0.2%
Increased throughput by 40%
ROI in 6 months via waste reduction
Certifications & Upgrades
Base Compliance:
CE EN 60204-1
ISO 9001:2015
OIML R60 Class 1
Advanced Options:
| Module | Function |
|---|---|
| Checkweigher | Post-fill verification (±10g) |
| Nitrogen Blanketing | O? <0.5% for oxidation-sensitive products |
| Robotic Loading | Auto container feeding |
| AR Calibration | HoloLens-guided volume setup |
Support & Service
Global Industrial Support:
Remote diagnostics via IIoT
Critical Spares Dispatch ≤48h:
Pistons & cylinders
Nozzle kits
Sensors & seals
On-Site Validation:
Gravimetric accuracy certification
Material compatibility testing
