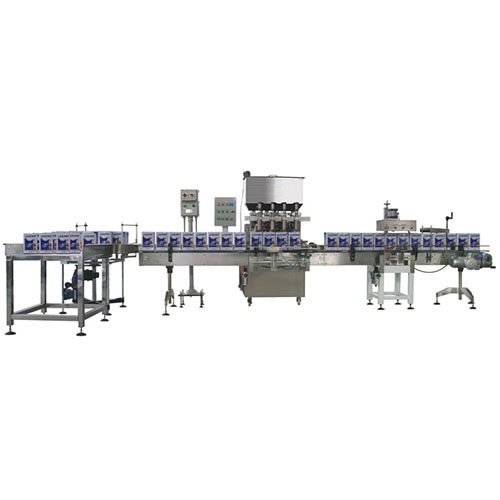

5L automatic filling machine
Automated 5L liquid filler with Coriolis mass flow metering (±0.1% accuracy). ATEX Zone 1 & FDA compliant. 40 fills/hr. VOC recovery >99%. CIP/SIP ready.
- Brand： glzon
- Model： GZM_10L
Product Essence: Scientific Precision in Every mL
Shanghai Guangzhi's 5L Series revolutionizes critical liquid filling with ±0.1% gravimetric accuracy - leveraging Coriolis mass flow measurement and AI viscosity compensation. Engineered for Zone 1 hazardous environments (ATEX) and Grade A/B cleanrooms, it delivers uncompromised performance for:
? Flammable solvents (acetone/ethanol)
? High-value pharmaceuticals (mAbs/vaccines)
? Viscous fluids (1-100,000 cP)
Core Technology Innovations
1. Nano-Grade Accuracy Control
| Subsystem | Technology | Specification |
|---|---|---|
| Flow Measurement | Dual-curve Coriolis mass flow meter | 0.05% density compensation |
| Temperature Control | Peltier-cooled flow path | ±0.01% vol/°C drift control |
| Viscosity Adaptation | AI predictive algorithm | Auto-adjust for 1-100,000 cP |
| Drip Prevention | Piezoelectric valve + retracting nozzle | Residual ≤0.5ml |
2. Explosion Protection (ATEX)
Pressure-Enclosed Servo: Ex d IIC T4
IS Control Panel: 24VDC Ex ia
Static Dissipation: Conductive UHMW-PE (<10? Ω)
3. Industry 4.0 Intelligence
? Digital Twin Integration: OPC UA-based simulation
? Blockchain Logging: Immutable batch records (GDPR/21 CFR Part 11)
? AR Guidance: HoloLens-assisted format changeovers (<3 min)
Technical Specifications
| Model | GMP Pharma | ATEX Chemical | Food Grade |
|---|---|---|---|
| Accuracy | ±0.1% (ISO 8655-6) | ±0.2% | ±0.15% |
| Throughput | 35 fills/hr | 30 fills/hr | 40 fills/hr |
| Viscosity Range | 1-30,000 cP | 5-100,000 cP | 10-50,000 cP |
| Flow Rate | 5-120 L/min | 5-100 L/min | 5-150 L/min |
| VOC Recovery | >99.5% (condenser) | >99% (thermal oxidizer) | >98% (carbon adsorber) |
| Cleanability | SIP @ 121°C/30min | CIP w/ solvent | CIP w/ caustic |
| Materials | 316L + USP Class VI | Hastelloy C276 | 316L + USDA UHMW-PE |
| Power | 380V/50Hz/4.2kW | 24VDC Ex ia | 380V/50Hz/3.5kW |
| Certifications | FDA 21 CFR 211 | ATEX/IECEx | 3-A Sanitary Standard |
Industry-Specific Configurations
| Application | Engineered Solution |
|---|---|
| Vaccine Adjuvants | Single-use fluid path (γ-sterilized) |
| Lithium Battery Electrolyte | Dry-air purged system (H?O <10ppm) |
| Silicone Oils | Heated flow path (80°C±0.5°C) |
| Flavors & Fragrances | Carbon-steel-free construction |
Operational Excellence Metrics
Swiss Pharma Client Case:
Challenge: 0.5% fill variance in €2M/L monoclonal antibodies
Solution: Coriolis + viscosity compensation + Class A cleanroom kit
Results:
? Fill accuracy ±0.08%
? Zero batch rejection in 18 months
? ROI: 5.3 months
Digital Ecosystem Integration
Smart Factory Modules:
| Module | Value Proposition |
|---|---|
| Carbon Footprint Tracker | Live CO?e savings reporting (ISO 14064) |
| Predictive Maintenance | AI analysis of pump performance |
| Remote ATEX Support | Intrinsically safe IIoT diagnostics |
| Formula Cloud Library | Secure recipe management (AES-256 |
