25L canisters filler
25L canisters fillerBasic parametersMaximum weighing capacity: 40kg;Display division value: 10g;Filling error: ± 10g;Filling speed: approximately 300-350 barrels per hour/(25 liters depending on feed
- Brand： glzon
- Model： GZM_30L

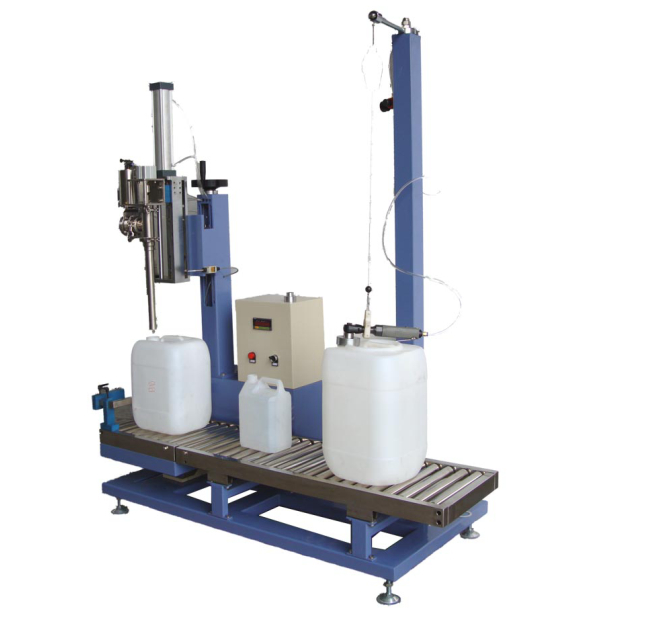

25L Canister Filling Machine
Sealed Precision ? Zero Vapor Leak ? ±0.15% Accuracy
For Hazardous Chemicals, Solvents & Oxygen-Sensitive Liquids
Shanghai Guangzhi Automation’s GZ-C25 Series redefines canister filling with hermetic sealing technology, ATEX Zone 1 compliance, and laboratory-grade gravimetric accuracy (±0.15%). Engineered for UN-certified 25L canisters, this system eliminates vapor emissions, prevents cross-contamination, and fills 28 canisters/hour – ideal for pyrophoric chemicals, high-purity solvents, and pharmaceutical intermediates.
Core Innovations
? Hermetic Sealing System
Double O-ring lance + nitrogen purge creates oxygen-free environment (<10 ppm O?).
? Explosion-Proof Architecture
ATEX Ex db IIC T6 (Zone 1) for solvents with flash point <23°C.
? Static-Safe Transfer
Conductive PTFE lances (10? Ω) + auto-grounding verification (<5 Ω).
? Quick-Change Adaptors
Tool-free swap for DIN/ISO/BS canister threads in <45 seconds.
? Moisture Control
-70°C dew point N? blanket prevents hydrolysis.
Technical Specifications
*Table: GZ-C25 Performance & Safety Metrics*
| Parameter | Specification | Critical Application |
|---|---|---|
| Accuracy | ±0.15% (gravimetric load cell) | Prevents off-spec batches |
| Throughput | 28 canisters/hour | |
| Vapor Containment | <0.1 g/hr VOC (EPA Method 21) | Meets NESHAP compliance |
| Material Contact | Hastelloy C-22 / PFA / Kalrez? SL | Resists HCl, H?S, amines |
| Pressure Rating | 6 bar (87 psi) working pressure | Safe for volatile liquids |
| Power | 400V/50Hz, 3.5 kW (Ex d motor) | IP66/Ex db IIC T6 |
| Inerting | Redundant O? sensors + auto N? top-up | For pyrophorics (e.g., TEAL) |
| Control System | 10" HMI + SIL 2 PLC | 21 CFR Part 11 option |
| Canister Types | UN 1A2/Y1.4-250 (steel), 1H2/Y150 (HDPE) | Adaptors for 20-30L variants |
| Dimensions | 1,500 × 1,000 × 2,100 mm | Weight: 850 kg |
Industry-Specific Solutions
?? Hazardous Chemicals
Double Containment: Spill tray with leak detection (SIL 2).
Vapor Recovery: Condensation unit captures 99.9% VOCs.
?? Pharma & Fine Chemicals
CIP/SIP: Clean-in-place/Steam-in-place (FDA GMP).
USP Class VI: Fluid paths for OEB-4 compounds.
