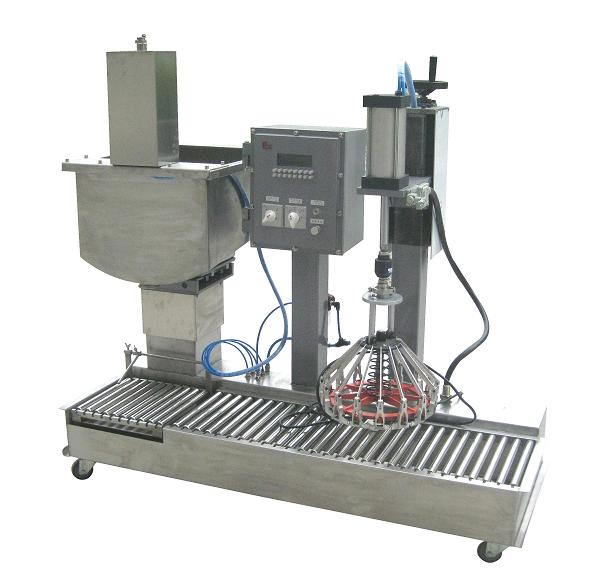

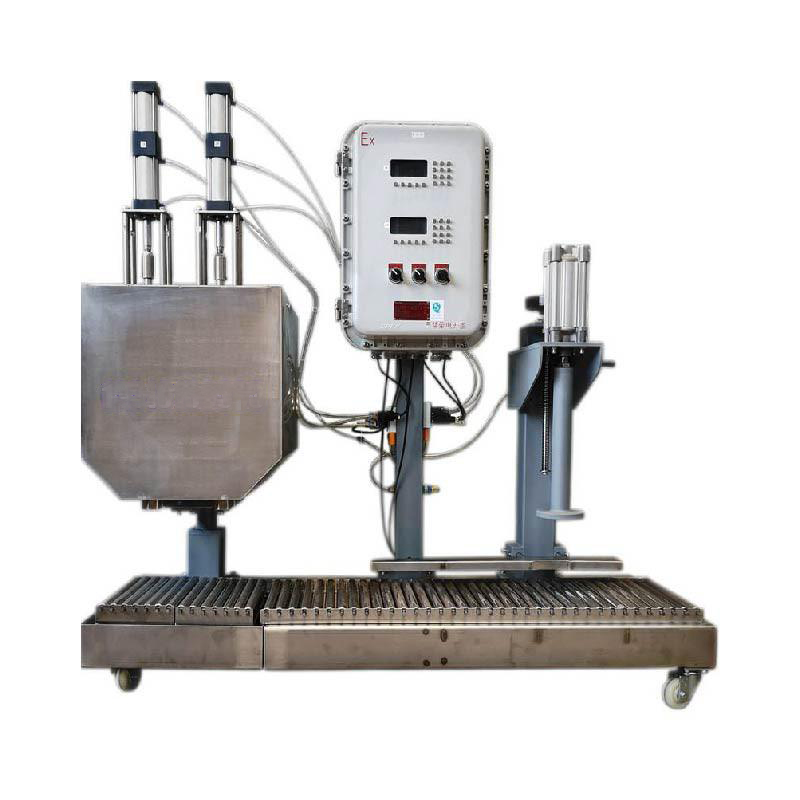

Paint Filling machine
Basic parametersMaximum weighing capacity: 40kg;Display division value: 10g;Filling error: ± 10g;Filling speed: approximately 300-350 barrels per hour/(25 liters depending on feed flow rate);■ Power s
- Brand：
- Model：
1. Product Introduction
Shanghai Guangzhi’s Paint Filling Machines are engineered for speed, precision, and reliability in demanding industrial environments. Our systems automate the filling process for containers ranging from 100ml cans to 30L pails, minimizing waste and maximizing throughput. Ideal for paint manufacturers, chemical suppliers, and packaging facilities, these machines ensure consistent fill volumes (±0.5% accuracy) while handling viscosities up to 50,000 cP.
Key innovations include:
Adaptive Viscosity Control: Automatically adjusts filling parameters for thin solvents or thick latex paints.
Leak-Free Sealing: Stainless steel/PVDF fluid paths resist corrosion and cross-contamination.
Smart HMI Interface: 10-inch touchscreen with recipe memory, production analytics, and error diagnostics.
Quick-Change Tooling: Swap filling nozzles & clamps in <5 mins for different container sizes.
2. Technical Overview
Core Specifications
| Parameter | Semi-Auto Model (PFM-SA) | Fully Auto Model (PFM-FA) |
|---|---|---|
| Filling Range | 100ml – 5L | 250ml – 30L |
| Filling Accuracy | ±0.5% of set volume | ±0.3% of set volume |
| Speed (Containers/Hour) | 600 – 900 | 1,200 – 2,400 |
| Viscosity Range | Up to 20,000 cP | Up to 50,000 cP |
| Filling Heads | 1-4 | 4-16 |
| Power Supply | 220V/380V, 50/60Hz | 380V, 50/60Hz |
| Air Pressure | 0.5 – 0.7 MPa | 0.6 – 0.8 MPa |
| Material Contact Parts | SS316L / PTFE / PVDF | SS316L / Ceramic / PVDF |
Material Compatibility Table
| Paint/Chemical Type | Compatibility | Recommended Seal Material |
|---|---|---|
| Water-Based Paints | Excellent | PTFE / EPDM |
| Solvent-Based Enamels | Excellent | Kalrez? / FFKM |
| Epoxy Coatings | Excellent | PTFE / PVDF |
| UV-Curable Resins | Good | PTFE / Ceramic |
| Acids/Alkalis (pH 1-14) | Excellent | PVDF / Ceramic |
3. Operational Features
Filling Methods: Gravimetric, volumetric piston, or time-pressure modes.
Safety: Explosion-proof (ATEX Option), emergency stop, splash guards, and vapor extraction ports.
Hygiene: CIP (Clean-in-Place) & SIP (Sterilize-in-Place) ready.
Integration: Compatible with conveyors, capping machines, labeling systems (PLC: Siemens/Allen-Bradley).
4. Quality Assurance
Certifications: CE, ISO 9001:2015, ISO 14001.
Testing: Each machine undergoes 72hrs of continuous run-time testing.
Warranty: 18 months on critical components.
5. Why Choose Guangzhi?
| Advantage | Benefit |
|---|---|
| Modular Design | Scalable from pilot lines to full production |
| Precision Engineering | ≤0.3% waste vs. industry avg. of 2-3% |
| Local Support | Engineers in 15 countries for installation & maintenance |
| Customization | Tailored solutions for unique formulations or containers |
APPLICABLE BARREL TYPE
