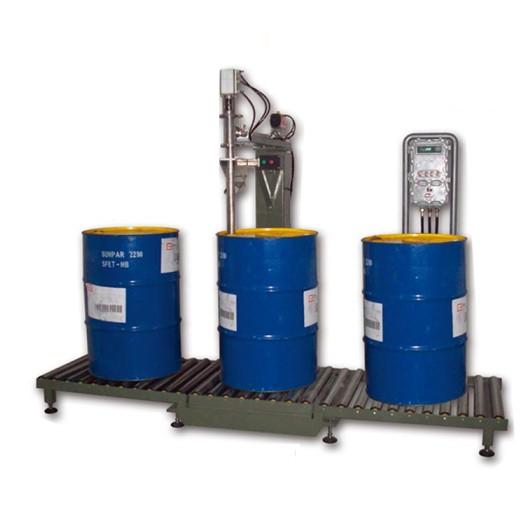

1. Typical applicationsIt is suitable for quantitative filling of 200L foam free liquid in chemical, food and pharmaceutical industries.2. System OverviewGZM-200L explosion-proof liquid upper type liq
Zero Vapor ? Zero Static ? Absolute Safety
For Pyrophoric, Volatile & Oxygen-Sensitive Liquids (e.g., TDI, Acrylic Monomers, Silanes)

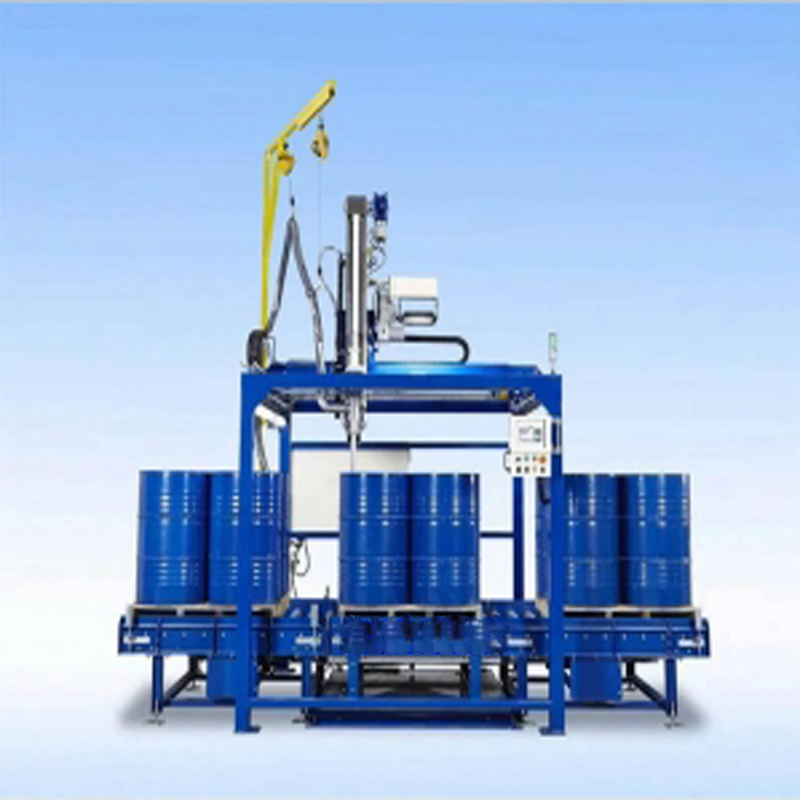

Shanghai Guangzhi Automation’s GZ-AquaLock Series revolutionizes hazardous liquid transfer by submerging 200L drums underwater during filling. This ATEX/IECEx-certified system eradicates ignition sources, suppresses 100% of VOC emissions, and achieves ±0.1% gravimetric accuracy – making it the ultimate solution for chemical plants handling EPA-listed Extremely Hazardous Substances (EHS).
? Vapor Suppression
Drum fills entirely underwater – no air contact = zero explosive atmosphere.
? Static Elimination
Water bath dissipates charge → prevents sparks (tested to <1 nJ MIE).
? Inerting Redundancy
Water layer + nitrogen blanket (optional) for pyrophorics (e.g., triethylborane).
? Spill Containment
Integrated water basin captures 200% drum volume (EPA SPCC-compliant).
Table: GZ-AquaLock Performance & Safety Metrics
| Parameter | Specification | Certification/Validation |
|---|---|---|
| Filling Volume | 20–200 L | – |
| Accuracy | ±0.1% (gravimetric load cell) | NIST-traceable calibration |
| Fill Time | 90–120 sec/drum (200L) | – |
| Water Bath Temp | 5–40°C (chiller/heater optional) | – |
| Material Contact | Hastelloy C-276 / PFA / Kalrez? 6375 | ASTM G48 Method C (50°C/72h) |
| Explosion Proof Rating | ATEX: Ex db eb ia mb IIC T6 Gb | IECEx, NEC 500 Class I Div 1 |
| Power Supply | 480V/60Hz, 7.5 kW (isolated transformer) | IP68 underwater motors |
| Control System | Remote 15" HMI (10m cable) + Fiber-Optic PLC | SIL 3 (IEC 61508) |
| Safety Systems | Oxygen monitor (<5% O?), water level sensor, seismic shutdown | API 2350 |
| Dimensions | 3,200 × 2,400 × 2,500 mm (stainless steel basin) | Weight: 3,800 kg (dry) |
Isocyanates (TDI/MDI): Prevents polymerization from moisture exposure.
Acrylic Monomers: Suppresses vapor while inhibiting runaway polymerization.
Silanes/Chlorosilanes: Neutralizes HCl formation via water hydrolysis.
Alkylmetals (e.g., TEAL): Dual water+N? barrier against pyrophoric ignition.
Oxygen-sensitive catalysts (e.g., Pd/C, Grignard reagents).
Peroxide-forming solvents (tetrahydrofuran, diisopropyl ether).
Pre-fill: Drum lowered into water basin → purged with N? (optional).
Submersion: Water fills basin → completely submerges drum.
Filling: Sealed filling lance penetrates drum lid → fills under water.
Post-fill: Lance retracts → basin drains → drum lifted.
Decontam: Auto-rinse cycle for drum exterior.
ATEX 2014/34/EU (Notified Body: DNV GL 0400)
IECEx IEC 60079-0/1/11/18
ASME BPE-2022 (Bio-Processing Equipment)
EPA Subpart CCC (HON Compliance for VOCs)
UK COMAH Regulations (Control of Major Accident Hazards)
