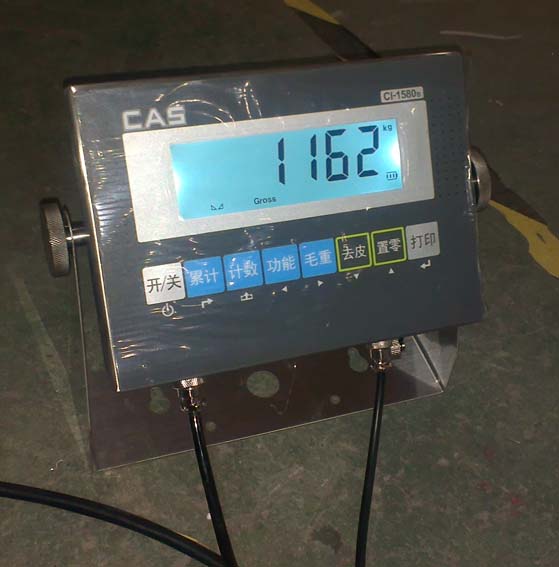

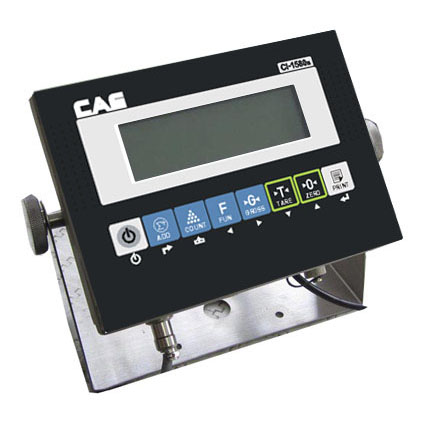

SS304 CI-1580 ATEX weighing indicator weighing controller weighing terminal with 4-20mA output
CI-1580B Ex-proof weighing indicator is a new generation of CAS’s weighing indicator. It uses Ex-proof design technology,
and there aretwo methods for the power supply: Ex-proof Ni-H battery pack and Ex-proof AC/DC power.
The product meets national standards GB3836.183《Explosive atmospheres- Equipment- General requirements》
and GB3836.483 《Explosive atmospheres- equipment protection by intrinsic safety“I”》。
The Ex mark is：ibIICT4/CT5，while use Ex-proof Ni-H battery pack is ibIICT4 and use Ex-proof power supply is ibIICT5。
2. Main function and Technical parameter
2.1 Main function
Weighing function:
>> Zero function
>> Tare function
>> Expended display function
>>Boot zero function
>>Gross weight display function
>>Cumulative scale function
>> Counting scale function
>> Animal scale function
>>Overload remind function
Optional weighing function
>>Printing function
>> RS232/RS485 serial interface or second display
>>4~20mA
Technical parameter
Accuracy class 5000 e
Resolution Display： 30, 000 ADC：2,000,000
Zero stability error TK0 < 0.1μV//K
Span stability error TKspn < ± 6 ppm//K
Test speed 50 ms
Sensitivity (internal) 0. 3 μV /d
Input voltage -30~30 mV DC
Excitation circuit 5 VDC, 4 wire connection, Maximum connect 6 load cell of 350Ω
AC power AC220v，DC9v
DC power Ni-H battery pack：DC7.2V/4000mAh
Operation temperature& Operation humidity -10~40℃；≤90%RH
Storage temperature - 40 °C ~ + 70 °C
Output signal RS232、RS485、4~20mA 、modbus
