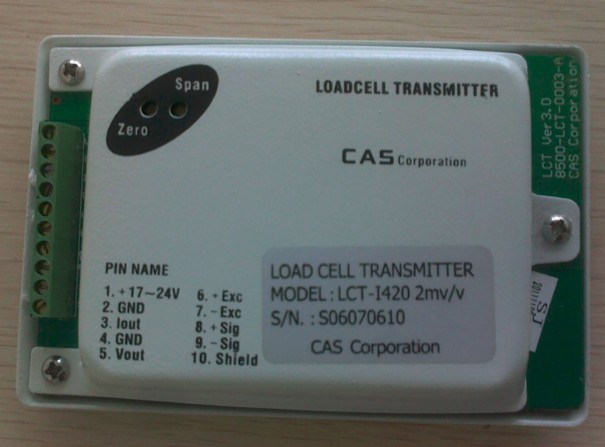

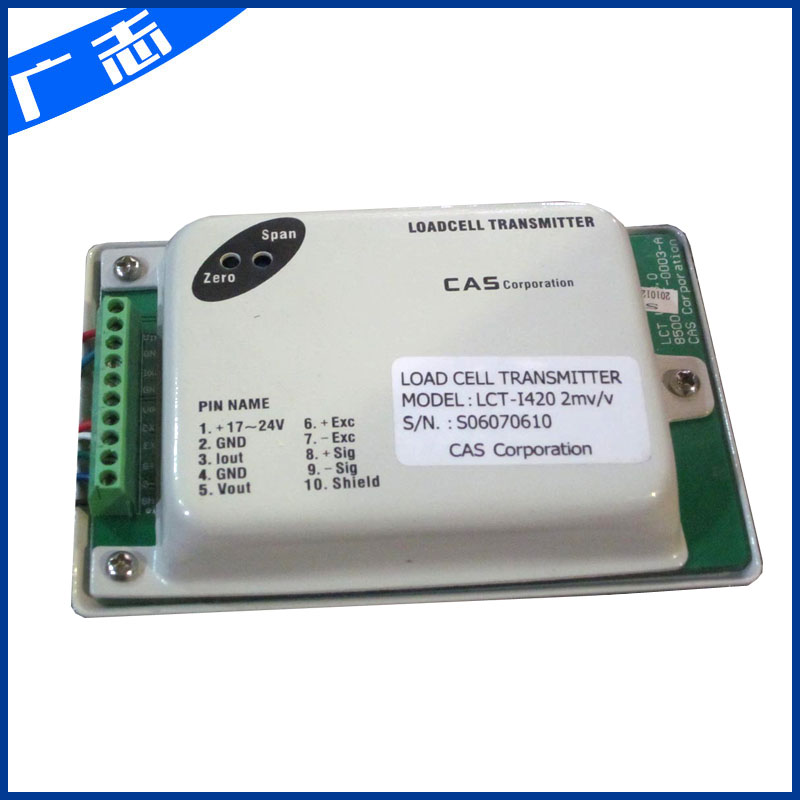

Weight transmitter LCT-I420 LCT-V010 loadcell signal transmitter 4-20mA outputLCT Series is a load cell transmitter and operates on single power source. It isdesigned to convert output of load cell an
Weight transmitter LCT-I420 LCT-V010 loadcell signal transmitter 4-20mA output
LCT Series is a load cell transmitter and operates on single power source. It is
designed to convert output of load cell and all kinds of strain gauge into output current or
output voltage. It is proper for industrial field and it will meet your demanding
needs.
LCT has a number of output forms.
Feature 1
LCT is a Load Cell transmitter, so you don’t need any other amplifiers.
Feature 2
LCT operates on single power source and built in surge absorber to protect surge from
industrial field.
Feature 3
LCT has a number of output forms. (Voltage : 0~5V, 1~5V, 0~10V
Current : 0~20mA, 4~20mA, 0~40mA )
1. Features
Voltage output
Output range
Output range
Current output
? Voltage Output Transmitter Current Output Transmitter
Model LCT-V05, LCT-V15, LCT-V010 LCT-I420, LCT-I020, LCT-I040
Output 0~5V, 1~5V, 0~10V 4~20mA, 0~20mA, 0~40mA
Power +17~24V +17~2 4V
Analog Signal Input 1.0, 2.0, 3.0 mV/V 1.0, 2.0, 3.0 mV/V
Input Impedance ? 1010 ? ? 1010 ?
Transducer Excitation Voltage 12 V 12 V
Zero Balance ?10% (R.O) ?10% (R.O)
Span Balance ?10% (R.O) ?10% (R.O)
Nonlinearity 0.02% (F.S) 0.025% (F.S)
Accuracy 0.02% (F.S) 0.025% (F.S)
Operating Temperature -10 ~ +85 ?C -10 ~ +85 ?C
Operating Humidity < 85% R.H < 85% R.H
Load Resistor ≥ 1.7 K? 0~500
ABOUT US
Shanghai Glzon Equipment Co., Ltd is a professional producing and trading company in weighing industry, we are located in the Chinese economic city Shanghai, with convenient traffic, transport, export port to all over the world.
We cooperate with state-owned factory and international company, the quality is guaranteed.
We are mainly focus on providing weighing solution to our customer, from commercial scale to industrial weighing machine. Like electronic crane scale, platform scale, truck scale, floor scale, pallet scale, portable vehicle weighing scale, Micro weighing scale, Top-loading balance, Analytical balance, Hign Precision weighing scale, crane scale, hook scale, hanging scale, platform scale with printer, explosive proof platfrom scale, stainless steel acid proof scale, U type scale, Bar type scale, packing machine, filling machine, weighing checker etc.
After service
* One year warranty
* Life time technique service support
* Provide consume spare parts at low price to old customer
* 24 hour phone service
