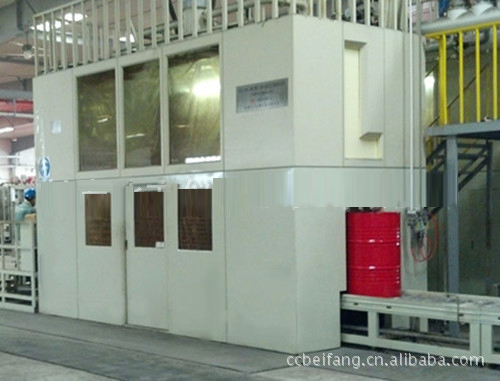

Full automatic 200kg oil drum filling line

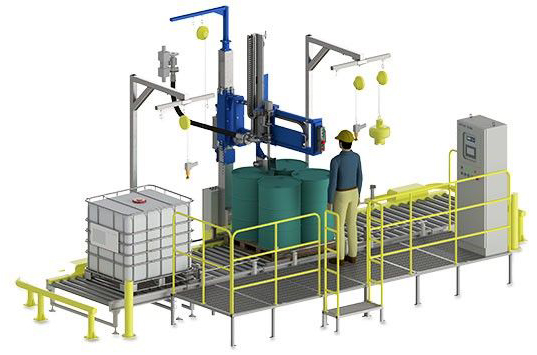

GFM-A200L automatic liquid filling machine, applied to 200L single barrel filling, uses the barrel filling way under the surface; unique adjustable spray gun and pneumatic ball valve design not only increases the target speed, but also maximizes the target accuracy. In addition, it can reduce the dripping of liquid residue during filling; the gas-collecting hood can avoid volatile gas emission in the process of filling, which effectively protect the operators.
During operation, the barrel is placed on the barrel conveyor line, the machine stops automatically, and the automatic alignment device automatically sprays liquid at the mouth of the empty barrel;
The spray gun sprays directly into the barrel mouth and automatically falls into the barrel mouth, the barrel is automatically peeled, and then accurately filled at two speeds; after filling, the spray gun automatically sprays to the barrel mouth, enters the barrel conveyor line, and stops at the capping place. The cap is placed manually and the capping is completed; the machine caps and completes the filling.
The main features
Filling way | under liquid surface filling in barrel |
Filling type | gross type weighing way |
The overall structure | high quality carbon steel, electrostatic spraying |
Pipeline structure | over-current components for 316 stainless steel, teflon gasket and seal ring |
Air fittings | provide filtering, adjustment, lubrication device (triple) |
Flow control | double speed control, through the combination control to control the product flow, once the electricity, all valves close |
Drip tight connect a liquid box | stainless steel manufacturing |
Lance lifting control | spray gun position is controlled by a proximity switch, spray gun rise speed adjustable |
Filling machine parameters
Filling capacity | 300 kg/barrel |
Filling accuracy | 0.2% |
Rated speed | 60 barrels (200L)/hr (related to material viscosity, speed) |
Weighing device | the biggest weighing 300 kg |
dividing the value of d | 100g |
Basic conditions | the level of solid concrete floor, concrete thickness should be greater than 15 cm |
Temperature range | - 10 ℃ ~ + 45 ℃ |
Relative humidity | < 95% (no condensation) |
Electricity source | the power supply of 220 v, 50 hz, 1.0 kw |
Work air | air pressure 0.5 MPa + / - 0.1 MPa, gas consumption: 10 m3 / h |
Material interface | (PN1.6 MPa (HG20592-97), according to the user interface standards |
Material inlet pressure | (0.2 ~ 0.6 MPa (and sexual) |
Air interface | users with G1/2 internal thread, used for quick joint connection |
Instructions for use
- can also be used to because of toxic gas or air bubbles devices such as the difficulty increases;
- use the environment: 1 (environment) in hazardous areas;
- nozzle from top to bottom and move around easily;
- it can display 100 kinds of SET the setting and setting of the coding (SET POINT);
- date and time when the power is, the cumulative information preservation function;
- can be connected parallel, serial printer (option);
- high speed, high precision when using 3 section of the control valve.(general: 2 period of control);
- use leakage protection device can prevent the external pollution.
Scope of application
Water-based paint, oil paint, lubricants, phenol, acetone, cooking oil, thinner, or various, Explosive chemicals
APPLICABLE BARREL TYPE
