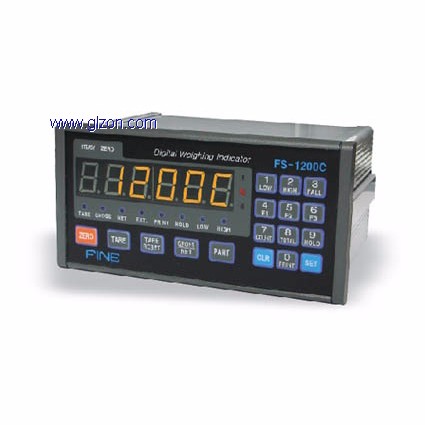

    Fine FS-1200C weighing controller


    Fine FS-1200C weighing controllerHigh & Low 2 Step Control WeighingFS-1200C Weighing Indicator is particularly suitable for weight and measures approved applications such as a Feed Weighing,




    •
                                Brand：
                                FINE
      •

    •
                                Model：
                                FS-1200C
      •
































    Fine FS-1200C weighing controller
    High & Low 2 Step Control Weighing
    FS-1200C Weighing Indicator is particularly suitable for weight and measures approved
    applications such as a Feed Weighing, Discharging Weighing, Accumulated Weighing, Weight
    Checking through High, Low 2Step Control Relay.

    FS-1200C also is available in a robust Aluminium housing for front panel mounting.
    Particularly optimum use for interference suppression and long-term stability in harshest
    environment.
    Features
    ● 2Step Control Relay(High, Low)
    ● Auto Free Fall Compensation
    ● High, Low, Finish, Empty/Zero 4pcs Relay Built In.
    ● Bigger 7 Segment LED Display(12mm(w) x 20mm(h)), Red, Green, Orange Color Adjustable
    ● Easy and Comfortable Calibration Operations(Zero Adjust Range: -4 mV ~ +42.0 mV)
    ● High Non-Linearty Range( 0.005% of Full Scale.)
    ● 3Kinds of Display Color Changeable according to the weight Setting
    ● Standard Time Chip Built in for configuration of Remote Display and Printer.
    ● Standard RS-232C/Current Loop Interface Built In for PC,PLC, External Equipment.
    ● 4 ~20mA, 0~10V Analog Output Adjustable
    Specification
    1. Analog Input & A/D Conversion Section
    Input Sensitivity0.2 μ V/D
    Zero Adjust Range-0.6mV ~ +42.0 mV
    Load cell Supply VoltageDC 10V( ± 5V)
    Max. loadcell Input Voltage32 mV
    Temperature Coefficient± 20 ppm / °C
    Input Noise± 0.5 μv P.P
    Input ImpedanceMore than 10 ΜΩ
    A/D Conversion400,000 Count
    Non-Linearty Range0.005% of Full Scale
    Conversion MethodDual - Slop ( Appr. 50times / Sec)
    2. Digital Section
    Max. Display“ 999950”
    A Digitx1, x2, x5, x10, x20, x50
    Display7 Segment, 6Digit Red High Luminance LED Display
    Character Size20m Height
    KeypadNumeral Keypad and Function Key(0~9),CLR,SET,PRINT
    Data Back-UpPermanent Record
    Time Chip PowerIridium Battery CR 2032
    3. General Section
    Power Voltage1Phase, 110 / 220VAC(± 10%), 50/60Hz, 10VA
    Indicator WeightNet 3.3Kg, Packing 3.8Kg
    Temperature-10 °C ~ 40°C
    MoistureLess than 85% RH
    Dimension198mm x 98mm x 135mm
    4. Option Section
    Basic Standard 1Serial Interface : RS-232C
    Basic Standard 2Current Loop
    Option 3Parallel Interface : BCD OUT Weight( Positive, Negative Logic)
    Option 4Serial Interface : RS-422, RS-485
    Option 5Analog Output : 0~10V or 10V ~ 0V
    Option 6Analog Output : 4~20 mA or 20 ~ 4 mA
    Option 7Printer Interface : Centronics Parallel
