CAS SB loadcells (20kg-2000kg)
CAS SB loadcells (20kg-2000kg)CAS load cell, SB s-beam weighing load cell models: SB-20L, SB-50L, SB-75L, SB-100L, SB-200L, SB-500L, SB-1, SB-2.⊙FEATURESFully environmental protectionMechanical p
- Brand： CAS
- Model： SB
CAS SB loadcells (20kg-2000kg)
CAS load cell, SB s-beam weighing load cell models: SB-20L, SB-50L, SB-75L, SB-100L, SB-200L, SB-500L, SB-1, SB-2.
⊙FEATURES
Fully environmental protection
Mechanical protection with steel cover
⊙Material
Anodized aluminum(20kgf - 250kgf)
Nickel plated steel(500kgf - 2tf)
⊙Cable
Braided shield 4-wire round cable
with Urethane-jacket
| Max. capacity | kgf | 20, 50, 75, 100, 200, 500, 1tf, 2tf |
| Rated output Zoro balance | mV/ V mV/ V | 2.0 ± 0.005 0 ± 0.02 |
| Combined error Repeatability Creep for 30min. Temperature effect on Zero Value Output value | % % % %/ 10℃ %/ 10℃ | 0.03 0.01 0.03 0.028 0.015 |
| Excitation Recommended Maximum Resistance Input Output Insulation | V V Ω Ω MΩ | 10 15 430 ± 40 350 ± 3.5 ＞2,000 |
| Compensated temperature range Operating temperature range | ℃ ℃ | -10 to +40 -30 to +80 |

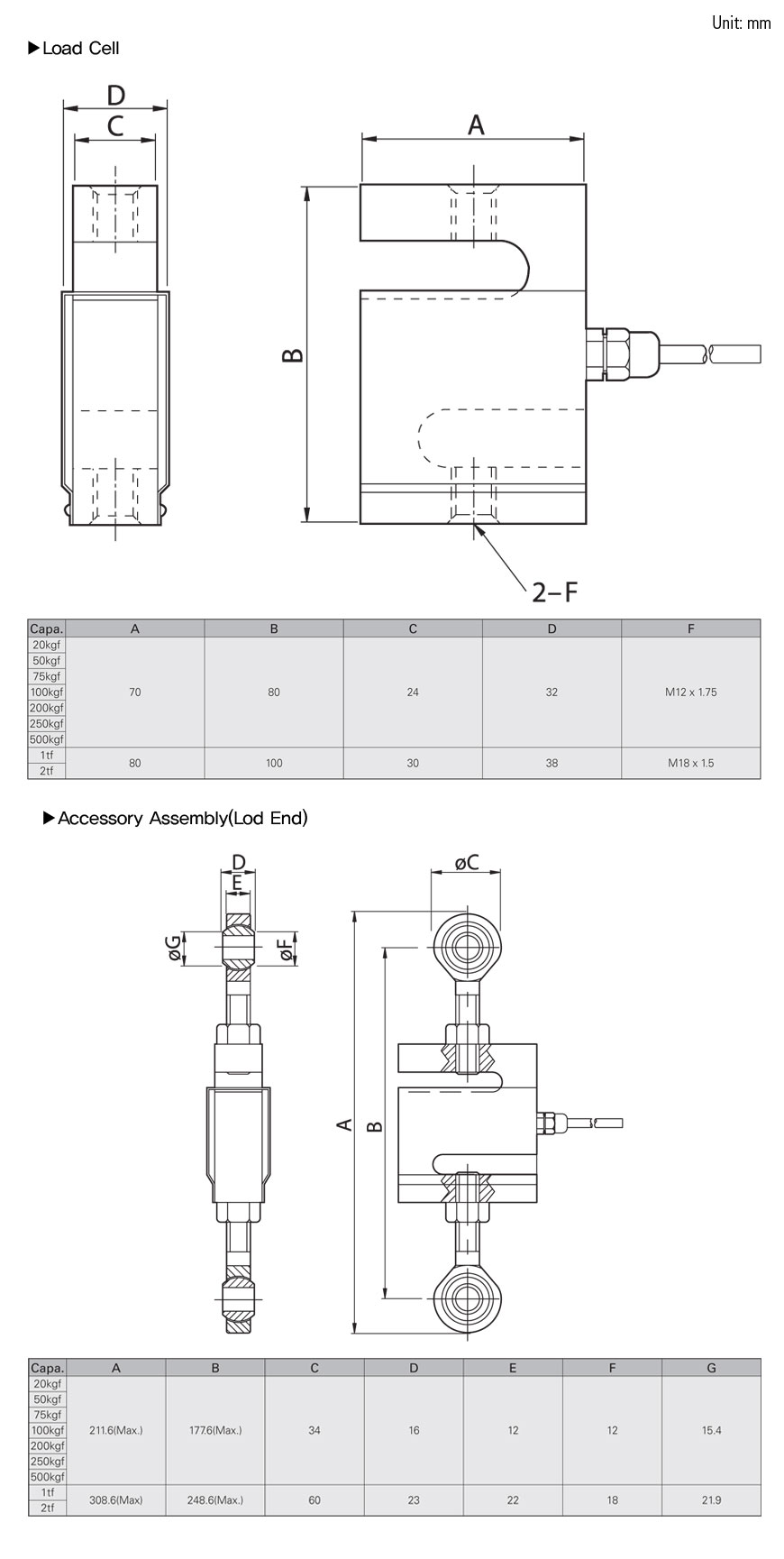

![SB[2].jpg](../upload/201704/1491813311332450.jpg "1491813311332450.jpg")
