CAS LSC loadcells (2tf-100tf)CAS load cell, LSC tank scale load cell, truck scale load cell, pan cake load cell models: LSC-2, LSC-5, LSC-10, LSC-20, LSC-50, LSC-100⊙FEATURESHigh output(3mV/V)Hermetic

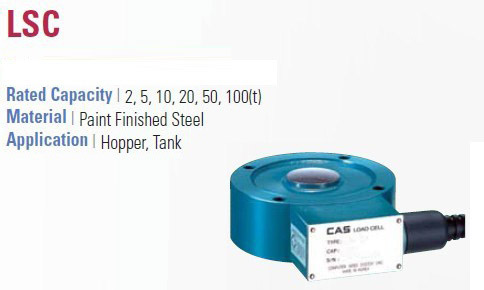

CAS LSC loadcells (2tf-100tf)
CAS load cell, LSC tank scale load cell, truck scale load cell, pan cake load cell models: LSC-2, LSC-5, LSC-10, LSC-20, LSC-50, LSC-100
⊙FEATURES
High output(3mV/V)
Hermetically sealed
High reliability against side force
Low profile design
Compression application only
⊙Material
Paint finished steel
⊙Cable
Braided shield 4-wire round cable
with P.V.C-jacket
| Max. capacity | tf | 2, 5, 10, 20, 50, 100 |
| Rated output Zoro balance | mV/ V mV/ V | 3.0 ± 0.0075 0 ± 0.03 |
| Combined error Repeatability Creep for 30min. Temperature effect on Zero Value Output value | % % % %/ 10℃ %/ 10℃ | 0.05 0.02 0.03 0.03 0.03 |
| Excitation Recommended Maximum Resistance Input Output Insulation | V V Ω Ω MΩ | 10 15 350 ± 3.5 350 ± 3.5 ＞2,000 |
| Compensated temperature range Operating temperature range | ℃ ℃ | -10 to +40 -50 to +80 |

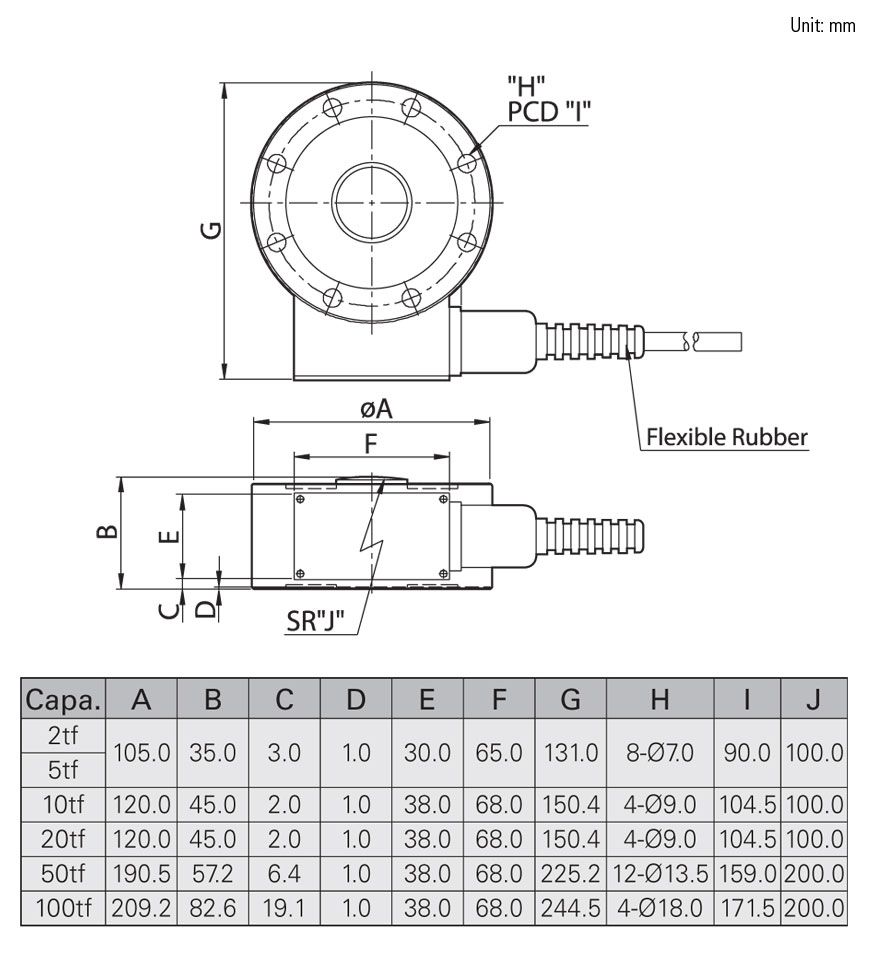

![LSC[4].jpg](../upload/201704/1491804712528497.jpg "1491804712528497.jpg")
