CAS MNT loadcells (50kg-500kg)CAS load cell, MNT miniature load cell models: MNT-50L, MNT-100L, MNT-200L, MNT-500L, MNT-1, MNT-2⊙FEATURESMiniature dimensionStainless steel constructionTension applicat

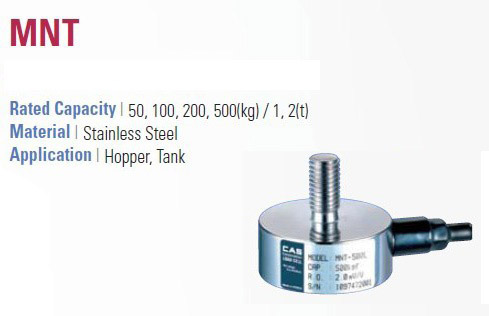

CAS MNT loadcells (50kg-500kg)
CAS load cell, MNT miniature load cell models: MNT-50L, MNT-100L, MNT-200L, MNT-500L, MNT-1, MNT-2
⊙FEATURES
Miniature dimension
Stainless steel construction
Tension application
Application for limited space
Protection class IP67
⊙Material
Stainless Steel
⊙Cable
Braided shield 4-wire round cable
with Urethane-Jacket
Ordering Information
MNT - XXXL
━┳
Capacity in kg
| Model | cable length |
| MNT-50,100,200,500L | 3m |
| MNT-1T | 5m |
| MNT-2T | 10m |
| Max. capacity | kgf | 50, 100, 200, 500, 1tf, 2tf |
| Rated output Zoro balance | mV/ V mV/ V | 2.0 ± 0.005 0 ± 0.06 |
| Combined error Repeatability Creep for 30min. Temperature effect on Zero Value Output value | % % % %/ 10℃ %/ 10℃ | 0.15 0.05 0.03 0.05 0.10 |
| Excitation Recommended Maximum Resistance Input Output Insulation | V V Ω Ω MΩ | 10 15 420 ± 30 350 ± 3.5 ＞2,000 |
| Compensated temperature range Operating temperature range | ℃ ℃ | -10 to +40 -20 to +80 |

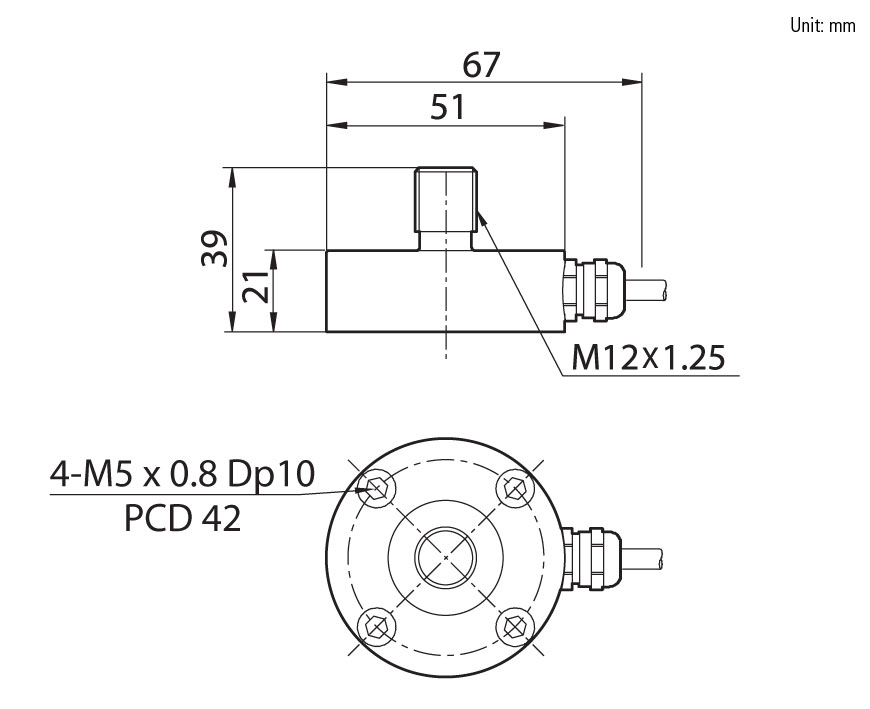

![MNT[17].jpg](../upload/201704/1491803637238550.jpg "1491803637238550.jpg")
