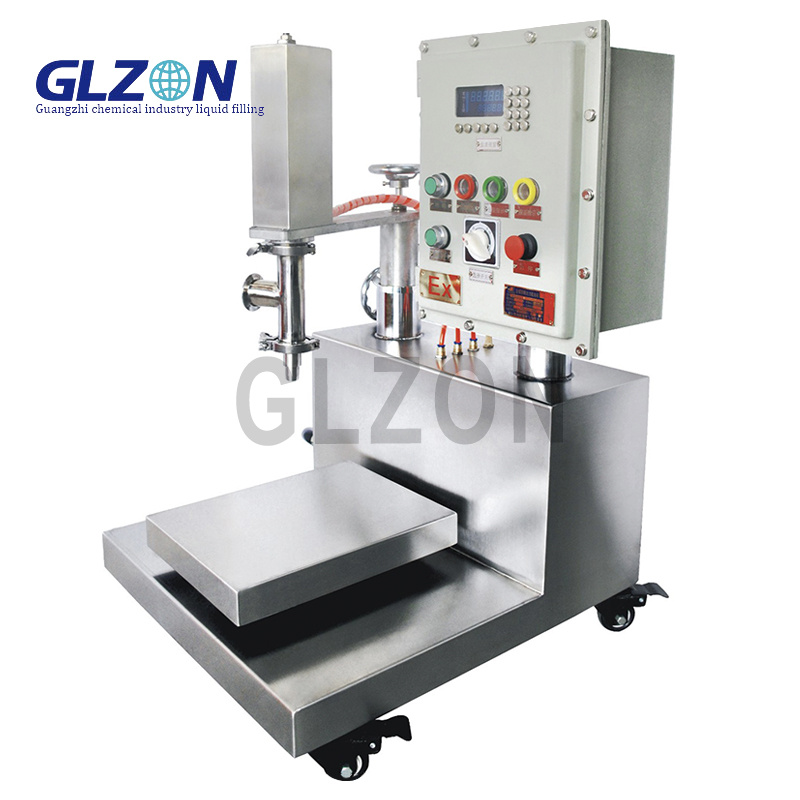

1-30L Semi-Automatic Real Stone Paint Filling Machine
Semi-automatic filler for 1-30L real stone paint (30-80% solids). Handles 100,000 cP viscosity & ≤2mm aggregates. ±1% accuracy, CIP ready & abrasion-proof.
- Brand： glzon
- Model： GZM_30L
Product Overview: Precision for Textured Coatings
Shanghai Guangzhi Automation's semi-automatic filling solution masters real stone paint — high-viscosity coatings with 30-80% solid content (e.g., quartz sand, ceramics). Engineered for 1-30L pails/buckets, this rugged system combines abrasion-resistant flow paths, anti-clog technology, and ±1% volumetric accuracy, enabling small-batch producers to fill challenging materials with minimal operator intervention.
Core Technology Highlights
1. Aggregate & Viscosity Optimization
Anti-Blocking Pistons: Tungsten carbide-coated cylinders handle ≤2mm solid particles
High-Torque Agitation: Helical ribbon mixer prevents settling (adjustable 10-60 RPM)
Viscosity Range: 5,000–100,000 cP (supports temperature-thickened formulas)
2. Industrial-Grade Durability
Abrasion-Proof Flow Paths:
Hardox 450 wear plates at contact points (3x lifespan vs stainless steel)
Ceramic-lined hoses for sand-laden paints
SplashGuard? Enclosure: Contains overspray during bucket changes
3. Operator-Centric Design
Plug-and-Play Setup: Tool-free format change in <3 mins (pail height: 150-400mm)
Foot Pedal Control: Hands-free start/stop frees operators for bucket handling
Overload Protection: Auto-stop if viscosity exceeds 120,000 cP
Technical Specifications
| Parameter | Specification |
|---|---|
| Filling Range | 1–30L (±1%) |
| Solid Particle Size | ≤2mm (max 80% by volume) |
| Throughput | 10–12 buckets/hour (20L pails) |
| Material Temperature | 5°C–50°C (heating jacket option) |
| Filling Nozzle | 38mm ? PTFE-coated anti-drip |
| Power Supply | 220V/50Hz, 2.2kW |
| Air Pressure | 0.5 MPa (for pneumatic lift) |
| Footprint (L×W×H) | 1500×900×1800mm |
Stone Paint-Specific Innovations
Anti-Segregation System
? Pre-fill homogenization cycle (30 sec)
? Real-time density monitoring (±2%)
Cleaning Efficiency
? CIP Ready: 3-step solvent purge (water/solvent/air)
? Quick-Disconnect Hoses: <5 min cleaning between batches
Case Study: Italian Architectural Coating Co.
Challenge:
Clogged nozzles every 50 buckets with 2mm quartz paint
12% overfill due to viscosity fluctuations
Solution:Guangzhi semi-auto filler with ceramic pistons + density compensation
Results:
? Zero clogs in 3,000+ fills
? 0.8% fill accuracy
? ROI in 4 months
Global Compliance & Value
Cost Efficiency
60% lower cost vs automated lines (ideal for 100-5,000 bucket batches)
No PLC programming: Operator training <30 minutes
Certifications
CE Machinery Directive
ISO 9001:2015
ATEX option for solvent-based paints (Zone 2)
Upgrade Options
| Module | Function |
|---|---|
| Heating Jacket | Maintains 40°C for winter operations |
| Nitrogen Blanketing | Reduces skinning in open pails |
| RFID Batch Tracking | Records fill time/weight per bucket |
Support Commitment
On-demand video troubleshooting
Abrasion-proof spare kits (global delivery ≤48h)
Ceramic pistons
Hardox wear plates
PTFE hoses
APPLICABLE BARREL TYPE
