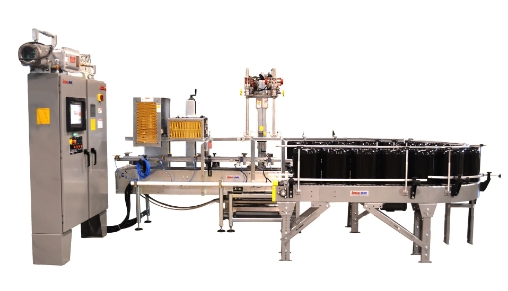

Two Head Automatic Net Weight Liquid Filling Machine delivers the highest levels of automation and precision bottom filling performance in a full-featured package.Automatic PLC-controlled filling, lid
Dual-Head Inline Net Weight Bottom Filling & Closing System for 1-5 Gallon Containers
ATEX Zone 22 Certified ? 40 Units/Hr ? ±0.05% Accuracy ? Zero-Oxidation ? Integrated BottomFill Cart?
| Parameter | BF-5100 (Standard) | BF-5200X (ATEX) | BF-5300P (Pharma-Grade) |
|---|---|---|---|
| Capacity | 1-5 Gallons (±0.05%) | Same | Same |
| Throughput | 40 Units/Hr | 36 Units/Hr | 34 Units/Hr |
| Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.03% |
| Container Types | HDPE Pails ? Jerrycans ? Stainless Totes Lid: Screw Cap ? Tri-Clamp ? Bolt Ring | UN-Certified | USP Type III Containers |
| Bottom-Fill Technology | BottomFill Cart? Integrated System: ? 360° Rotating Nozzle ? Z-Axis Lift: 0-800mm ? Contact-Free Filling ? <0.1ppm Oxygen Ingress | ATEX Brushless Drive | cGMP Sealed Enclosure |
| Filling Heads | Dual Servo-Controlled Mass Flow Meters Flow Rate: 80L/min/Head Density Accuracy: ±0.01% Head Sync: <0.02% Variance | ATEX Diaphragm Pumps | Peristaltic Pumps (FDA) |
| Material Contact | 316L EP (Ra<0.4μm) | Hastelloy C276 | PFA-Lined Path |
| Oxygen Control | N? Purge System: ? O?<0.1% Pre-Fill ? Real-Time Oxygen Monitoring ±0.01% ? Double Laminar Seal | Same + SIL-2 Control | VHP-Compatible |
| Closing System | TorqueSeal? Robotic Capper Range: 10-100 N·m Accuracy: ±0.5% Cap Compatibility: 50-150mm | Magnetic Clutch | Servo Stepper Motor |
| **BottomFill Cart?** | Integrated AGV System: ? LiDAR SLAM Navigation ? 500kg Payload ? Auto-Docking ±1mm ? IP67 Protection | ATEX Version (Ex ic) | Cleanroom AGV |
| Power | 480V/60Hz, 12kW | 24VDC Ex ic | 480V/60Hz, 11kW |
| Certifications | CE, ISO 9001 | ATEX Zone 22 | FDA 21 CFR 177.2600 |
Performance Validation:
| Product | Sensitivity | O? Ingress | Industry Standard |
|---|---|---|---|
| Fish Oil | High | <0.05% | 0.3-0.8% |
| Antioxidant Additive | Extreme | <0.02% | 0.5-1.2% |
| Pharmaceutical Base | Critical | <0.01% | 0.2-0.6% |
| Feature | Specification | Performance |
|---|---|---|
| Navigation | LiDAR SLAM + AI Pathing | ±1mm Positioning |
| Lift Capacity | 500kg | 0.05mm/s Precision |
| Battery | 48V LiFePO? (8h Runtime) | 30-min Fast Charge |
| Connectivity | 5G + Wi-Fi 6 | <10ms Response |
1. AGV Cart Loading → 2. Auto-Docking → 3. N? Purging (O?<0.1%) → 4. Bottom-Fill Nozzle Insertion → 5. Dual-Head Gravimetric Filling (±0.05%) → 6. Nozzle Retract → 7. Torque Capping (±0.5%) → 8. Weight Verification → 9. Laser Coding
Cycle Time: 90 seconds/unit
Oxidation Prevention & Precision
? Zero-Oxidation Architecture: | **Component** | **Technology**| |----------------------|----------------------------------| | Fill Nozzle | Double Laminar Seal | | Purging System| Membrane N? Generator | | Seal Material | Kalrez?6375 (O? Permeability <0.001cc/mm2) | ? Dual-Head Synchronization: 1. AI-Powered Flow Matching (<0.02% Variance) 2. Real-Time Density Compensation 3. ±0.1°C Temperature Control ? Industrial Mobility: - AGV Cart with SLAM Navigation - Auto-Charging Docking Stations - 360° Nozzle Rotation
? ATEX 2014/34/EU Zone 22 ? FDA 21 CFR 177.2600 ? EHEDG EL Class I
"After implementing BF-5200X:
Output: 22 → 40 Units/Hr (+82%)
Oxidation Loss: ↓98% (O?<0.05%)
Material Savings: $125,000/year
ROI Period: 14 months"
