Pressure Flow Air Packer Valve Bag - Pneumatic Dry Material Packaging Machine
Pressure Flow Air Packer Valve Bag is a professional pneumatic packaging equipment, specially designed for dry materials which are typically illiquid. It takes compressed air as the driving force, realizing efficient, stable and precise feeding and packaging through scientific pneumatic transmission principle. Widely applicable to large, medium and small ready-mixed mortar stations and dry mortar packaging materials, this machine is suitable for packaging good fluidity powder or small particles (≤ 5mm) such as cement, powder mortar, and provides single valve port, dual valve port and multi-valve port forms to meet diverse production needs of different enterprises.
As a core equipment in dry material packaging industry, our Pressure Flow Air Packer Valve Bag solves the pain points of low efficiency, poor accuracy and high maintenance cost of traditional dry material packaging equipment. It adopts advanced pneumatic transmission technology, without complicated mechanical drive structure, which not only ensures stable packaging speed and accuracy, but also has the advantages of less wearing parts, less maintenance and long service life. The machine is easy to operate, and there is no material leakage during long-term use, which effectively reduces material waste and enterprise production costs.
Working Principle
The Pressure Flow Air Packer Valve Bag adopts scientific and efficient pneumatic working principle, relying on compressed air to drive material flow, and realizing precise control of feeding amount through valve adjustment, ensuring stable and effective packaging accuracy and speed:
Compressed air is used as the driving force. The compressed air passes through the atomizer (air) to make the material in the sealed container flow, so as to achieve the effect of feeding and conveying. The pneumatic rubber valve controls the feeding amount of packaging materials by closing and adjusting the flow area of the valve, so as to ensure that each bag of materials meets the preset weight requirement and realize efficient and precise packaging.
Core Features
Our Pressure Flow Air Packer Valve Bag has outstanding performance advantages and humanized design, which are ahead of the industry in the same type of products:
High precision measurement: Adopt weighing control instrument to control measurement, with high packaging accuracy and good consistency, ensuring that each bag of materials meets the standard;
Stable performance: The packaging speed, accuracy and operation are stable, which can adapt to long-term continuous production needs of enterprises;
Low maintenance cost: Less wearing parts, simple maintenance process, long service life, effectively reducing the maintenance cost of enterprises;
Easy operation: The operation interface is simple and intuitive, operators can get started quickly without professional technical training;
No material leakage: Advanced sealing design, no material leakage during long-term use, reducing material waste;
Flexible configuration: Provide single valve port, dual valve port and multi-valve port forms to meet diverse production needs of different enterprises;
Wide applicability: Suitable for good fluidity powder or small particles (≤ 5mm), such as cement, powder mortar, and applicable to large, medium and small ready-mixed mortar stations and dry mortar packaging materials;
Stable working environment adaptation: Adapt to a variety of working environments, with reasonable working temperature and humidity range, stable operation in harsh environments.
Technical Parameters (Models: GZM-AI / GZM-AII / GZM-AIII)
Technical Item | GZM-AI | GZM-AII | GZM-AIII |
|---|
Applicable Materials | Good fluidity powder or small particles (≤ 5mm), such as cement, powder mortar |
Weighing Form | Single nozzle, gross weight (GW) | Double nozzles, gross weight (GW) | Three nozzles, gross weight (GW) |
Packing Weight (NW) | 20 ~ 50Kg |
Packing Accuracy | 1% |
Packing Speed | 250 ~ 400 bags / hour | 350 ~ 700 bags / hour | 500 ~ 1000 bags / hour |

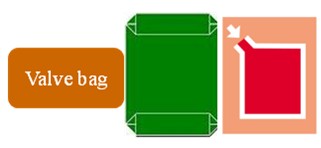

Bag Form | Valve bag |
Air Pressure | 0.5MPa |
Working Temperature | -20 ℃ ~ 45 ℃ |
Relative Humidity | 95% (non-condensing) |
Supply Voltage | AC220V, 50Hz |
Maximum Power | 0.1KW | 0.2KW | 0.3KW |
Air Consumption | 0.7m3/min | 1.4m3/min | 2.1m3/min |
Dimensions (mm) | 650x1270x1600 | 1300x1270x1600 | 1950x1270x1600 |
Equipment Weight | About 600Kg | About 1200Kg | About 1800Kg |
Application Scenarios
Our Pressure Flow Air Packer Valve Bag is widely applicable to various dry material packaging scenarios, especially suitable for:
Large, medium and small ready-mixed mortar stations;
Dry mortar production and packaging enterprises;
Cement production and packaging enterprises;
Other enterprises engaged in packaging good fluidity powder or small particles (≤ 5mm) materials.
Our Pressure Flow Air Packer Valve Bag adheres to strict quality control standards, from raw material selection to finished product delivery, every link is strictly inspected to ensure the stability and reliability of the equipment. We can also provide personalized customization services according to the specific needs of customers, such as adjusting packaging weight, optimizing valve port design and matching additional accessories, to meet the diverse production needs of different industries and customers.
With rich industry experience, professional R&D team and perfect after-sales service system, we are committed to providing high-quality Pressure Flow Air Packer Valve Bag and intimate services for global customers, helping your enterprise improve production efficiency, reduce costs and enhance market competitiveness.
