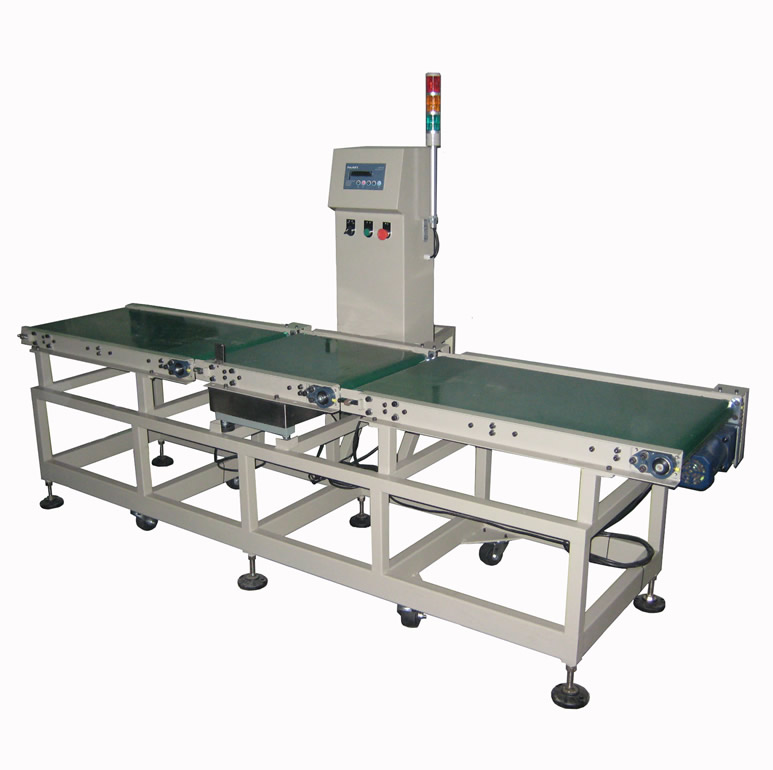

20Kg series weight inspection scale
Shanghai Guangzhi’s 20kg checkweigher achieves ±0.01g accuracy at 200ppm. AI defect detection, OPC UA & GMP design. Pharma/food/chemical compatible.
- Brand： glzon
- Model： GZM-50V
Product Essence: Precision Redefined for Industrial QC
Shanghai Guangzhi Automation’s 20Kg Series Weight Inspection Scale delivers ±0.01g measurement accuracy at 200 packages per minute – mastering vials, cans, bags, and cartons from 1g to 20kg. Featuring AI-powered anomaly detection, self-calibrating load cells, and GMP-compliant construction, it achieves <0.001% false reject rate while ensuring 100% weight compliance in pharmaceutical, food, and chemical operations.
Core Technology Innovations
1. Military-Grade Metrology
| Technology | Performance |
|---|---|
| MEMS Load Sensors | 0.0005% FS accuracy (OIML R51 Class 0.5) |
| Dynamic Compensation | Vibration rejection (≤0.05g @ 10Hz) |
| Auto-Calibration | ISO 17025 traceable weights |
| Temperature Drift Control | ±0.0002%/°C stability |
2. AI-Driven Quality Intelligence
Deep Learning Reject System:
Detects under/overfills, missing components, damaged packaging
Self-learns from 1,000+ defect samples
Real-Time Process Control:
Parameter Adjustment Speed Filler Feedback 50ms response time Recipe Switching <2s between product formats
3. Hygienic Industrial Design
GMP/NSF Compliance:
IP69K stainless steel (Ra≤0.4μm)
Radiused corners + sloped surfaces
Quick-Change Platforms:
Tool-free belt width adjustment (200-600mm)
Auto-height sensing for containers
Technical Specifications
| Model | Standard | Pharma Grade | ATEX Zone 21 |
|---|---|---|---|
| Capacity | 1g-20kg (±0.01g) | 1g-20kg (±0.005g) | 1g-15kg (±0.02g) |
| Speed | 200 ppm | 150 ppm | 120 ppm |
| Accuracy | ±0.01g (min) | ±0.005g (min) | ±0.02g (min) |
| Reject Precision | ±1ms | ±0.5ms | ±1ms |
| Data Interface | Ethernet/IP, Modbus TCP | 21 CFR Part 11 | OPC UA Ex ia |
| Power | 100-240VAC, 0.8kW | 100-240VAC, 0.8kW | 24VDC intrinsic safety |
| Certifications | OIML R51, CE | FDA, GAMP 5 | ATEX, IECEx |
| Footprint (L×W×H) | 2000×800×1200mm | 2200×800×1200mm | 2300×800×1200mm |
Industry-Optimized Solutions
Pharmaceuticals
Aseptic wipe-clean design
Electronic batch records (EBR)
0.001g accuracy for lyophilized vials
Food & Beverage
USDA meat/poultry approval
Allergen control mode (auto-purge)
Washdown survival (80°C/80 bar)
Chemicals
Solvent-resistant load cells
Static-dissipative belts (<10? Ω)
Corrosion-proof enclosure (IP66)
Smart Control Ecosystem
10" HMI with Statistical Dashboard
Real-Time SPC Analytics:
Cp/Cpk trend monitoring
Weight distribution histogram
Reject cause Pareto chart
Predictive Alerts:
Belt wear forecasting
Sensor drift detection
Industry 4.0 Integration
OPC UA to MES/SCADA
Blockchain Traceability:
Weight data → batch number → ERP
Digital twin for virtual FAT
Operational Impact
Global Vaccine Manufacturer:
Reduced giveaway from 0.8% to 0.05%
Achieved zero 483 observations in FDA audits
ROI in 6 months via waste reduction
Global Compliance & Upgrades
Certifications:
OIML R51 Class 0.5
FDA 21 CFR Part 11
ATEX 2014/34/EU (Zone 21)
ISO 9001:2015
Critical Upgrades:
| Module | Function |
|---|---|
| X-Ray Inspection | Combines weight/density/contaminant check |
| Thermal Printer | Auto-print QC labels |
| AR Calibration | HoloLens-guided weight verification |
| Carbon Footprint Tracker | Energy consumption analytics |
Support & Service
24/7 Global Metrology Support:
Remote diagnostics via VPN-secured IIoT
Critical Spares Dispatch ≤48h:
MEMS load sensors
FDA-grade conveyor belts
AI inference modules
On-Site Validation:
NIST-traceable calibration
GMP IQ/OQ/PQ documentation
