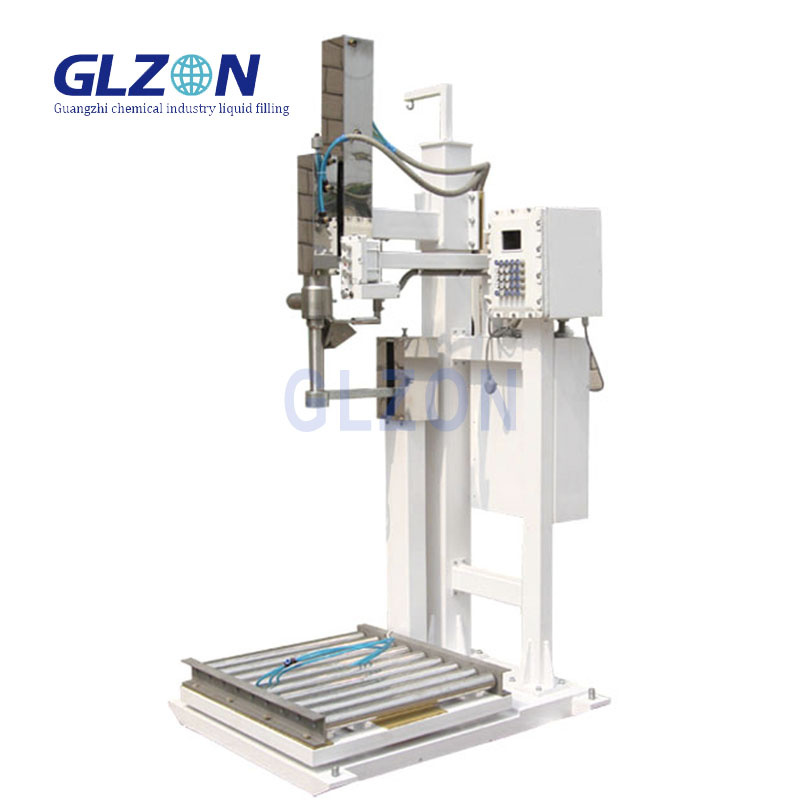

Industrial asphalt drum filler: 200L filling at ±0.5% accuracy for 320°C bitumen. Auto metering, steam-jacketed & ATEX certified. 15 drums/hour. API/ASME compliant.
Precision Meets Extreme Conditions
Shanghai Guangzhi AD-200 masters the world's toughest filling challenge – transferring 200L of 320°C asphalt into drums at ±0.5% mass accuracy via ceramic-coated Coriolis meters, steam-jacketed flow paths, and explosion-proof controls. Engineered for road construction, roofing, and refinery operations, it eliminates clogging, fumes, and measurement errors while achieving 15 drums/hour in Zone 1 hazardous environments.
| Component | Technology | Performance |
|---|---|---|
| Ceramic-Lined Flow Path | Al?O?-ZrO? coating (1600°C rating) | Zero degradation @ 320°C |
| Triple-Jacket Heating | Steam/Thermal oil/Electric tracing | ±1°C temp control |
| Coriolis Mass Flow Meter | Hastelloy C-22 sensor | ±0.2% density compensation |
| Auto-Purge System | Nitrogen flush between fills | Oxygen <0.5% to prevent ignition |
Critical Safety Features:
ATEX Zone 1 Certification:
| Component | Protection Level |
|---|---|
| Control Cabinet | Ex d IIC T4 |
| Sensors | Ex ia IIB+H2 T135°C |
Emergency Protocols:
Auto-shutdown on temp >330°C
Pressure relief valves @ 25 bar
| Parameter | AD-210 Standard | AD-220X ATEX | AD-230M Marine |
|---|---|---|---|
| Capacity | 200L (±0.5%) | 200L (±0.7%) | 200L (±0.6%) |
| Temp Range | 150-320°C | 150-320°C | 150-300°C |
| Viscosity Handling | Up to 500,000 cP | Same | Up to 300,000 cP |
| Flow Rate | 5-30 L/min | 5-25 L/min | 5-28 L/min |
| Material Contact | Inconel 625 + Ceramic | Same | 316Ti + Ceramic |
| Power | 480V/60Hz, 18kW | 24VDC Ex ia | 440V/60Hz, 22kW |
| Steam Consumption | 50kg/h @ 10bar | 45kg/h @ 10bar | 55kg/h @ 10bar |
| Nitrogen Use | 15 L/min | 20 L/min | 18 L/min |
| Throughput | 15 drums/hour | 12 drums/hour | 14 drums/hour |
| Footprint (L×W×H) | 3200×1800×2500mm | 3500×1900×2600mm | 3300×1800×2700mm |
Road Construction
Mobile skid-mounted version
Quick-coupling for tanker trucks
Auto-viscosity adjustment for PMB
Refinery Terminal
API 650 compliant overfill protection
Reid Vapor Pressure monitoring
Blockchain batch logging
Roofing Material
Polymer-modified asphalt compatibility
Fiber additive injection port
Low-fume formulation mode
Marine Asphalt
DNV-GL certified
Salt spray resistance (ISO 9227)
Motion compensation (pitch/roll ≤5°)
10" HMI with Asphalt Intelligence
Key Modules:
Viscosity-Temp Profiling:
Auto-adjusts flow based on Arrhenius equation
Carbon Footprint Tracker:
| Parameter | Optimization |
|---|---|
| Steam consumption | AI reduces by 15% |
| N? usage | Smart purge cycle |
Digital Twin:
Simulates thermal stress on components
Global Road Builder Case:
Challenge: Manual filling caused 3% waste + safety incidents
Solution: AD-210 with auto metering + fume control
Results:
? ±0.5% accuracy for $1.2M/year savings
? Zero vapor ignition incidents
? ROI: 8 months
Global Compliance:
ATEX 2014/34/EU (Zone 1)
API Std 650 (Overfill Protection)
ASME B31.3 (Process Piping)
DNV-GL Marine Certification
Advanced Modules:
| Module | Function |
|---|---|
| Robotic Drum Handler | Auto loading/sealing (10 drums/hr) |
| VOC Abatement | Thermal oxidizer integration |
| AR Safety Training | HoloLens hazard simulation |
| Bitumen Quality QC | In-line penetration test |
24/7 Asphalt Hotline:
Remote diagnostics via satellite link
Critical Spares Dispatch ≤72h:
Ceramic flow tubes
Steam tracing kits
Ex-rated sensors
Performance Warranty:
3-year thermal component coverage
| Failure Mode | Response Time |
|------------------------|------------------------|
| Temp control loss | 4hr remote fix guarantee |
| Accuracy drift >0.8% | On-site recalibration |
APPLICABLE BARREL TYPE
