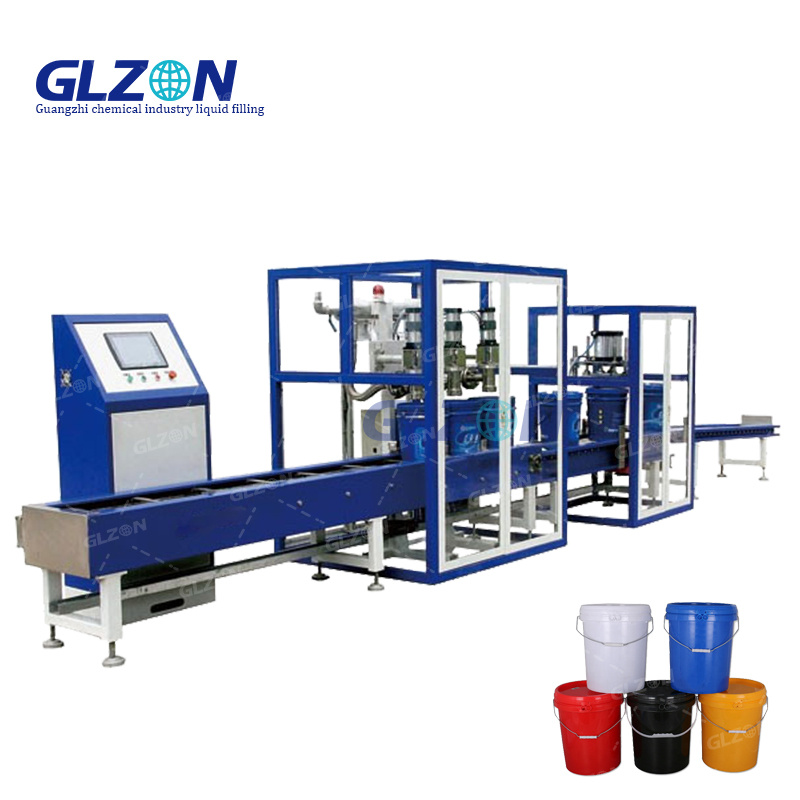

QuantFill Pro QP-10000 SeriesFully Automated Additive Weighing, Capping & Palletizing SystemEnd-to-End Gravimetric Packaging • 80 Drums/Hr • ±0.05% Accuracy • ATEX Zone 1 • Industry 4.0 Integratio
Fully Automated Additive Weighing, Capping & Palletizing System
End-to-End Gravimetric Packaging ? 80 Drums/Hr ? ±0.05% Accuracy ? ATEX Zone 1 ? Industry 4.0 Integration
| Subsystem | QP-1100 (Standard) | QP-1200X (ATEX) | QP-1300P (Pharma-Grade) |
|---|---|---|---|
| Filling Capacity | 5-200kg (±0.05%) | 5-200kg (±0.08%) | 5-200kg (±0.03%) |
| Throughput | 80 Drums/Hr | 75 Drums/Hr | 70 Drums/Hr |
| Weighing Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.03% |
| Capping Torque | 5-200 N·m (±0.5%) | Same ±0.8% | Same ±0.3% |
| Palletizing Speed | 12 Cycles/Min | 11 Cycles/Min | 10 Cycles/Min |
| Viscosity Range | 1-5,000,000 cP | 100-3,000,000 cP | 50-10,000,000 cP |
| Material Contact | Hastelloy C276 | Zirconium R60702 | 316L EP (Ra<0.2μm) |
| Automation Level | Industry 4.0:<br>? AI Recipe Management<br>? Predictive Maintenance<br>? Digital Twin Integration | SIL-3 Safety PLC | 21 CFR Part 11 Compliance |
| VOC Containment | TripleShield?:<br>1. -0.8bar Vacuum Hood<br>2. Activated Carbon Adsorption<br>3. Kalrez?6375 Seals | + Nitrogen Inerting | VHP Sterilization |
| Certifications | CE, ISO 9001 | ATEX Zone 1 | FDA 21 CFR 175.300 |
| Parameter | Performance | Technology |
|---|---|---|
| Accuracy | ±0.05% | Temperature-Compensated Load Cells |
| Tare Speed | <3s | AI-Container Prediction |
| Density Compensation | ±0.01% | Coriolis Mass Flow Meter |
| Metric | Specification |
|---|---|
| Payload | 1,500kg |
| Positioning Accuracy | ±0.5mm (LiDAR SLAM) |
| Patterns | 50+ Pre-Programmed |
1. AGV Drum Infeed → 2. Auto-Tare Weighing → 3. Precision Filling (±0.05%) → 4. Torque Capping (5-200 N·m) → 5. Seal Integrity Test → 6. Robotic Palletizing → 7. Stretch Wrapping → 8. AGV to Warehouse
Cycle Time: 45 seconds/drum
Unified Precision Architecture
? Gravimetric Excellence: | **Component** | **Performance**| |----------------------|------------------------| | Load Cells| ASTM Class 0.02 | | Air Buoyancy Comp. | ±0.03% Error| | Flow Control| Adaptive PID Algorithm | ? Zero-Leak Capping: 1. Laser-Guided Thread Detection 2. Real-Time Torque Monitoring 3. Helium Mass Spec Verification ? Palletizing Intelligence: - 3D Vision Stacking Algorithms - Collision-Free Path Planning - Energy Recovery (35% Savings)
? ATEX 2014/34/EU Zone 1 ? FDA 21 CFR 175.300 ? ISO 8370:2021 (Robotic Safety)
BASF Additive Production Facility:
"After implementing QP-1200X:
Output: 45 → 80 Drums/Hr (+78%)
Material Savings: 2.8% → 0.06%
Cap Defect Rate: 1.5% → 0.02%
ROI Period: 8 months"
