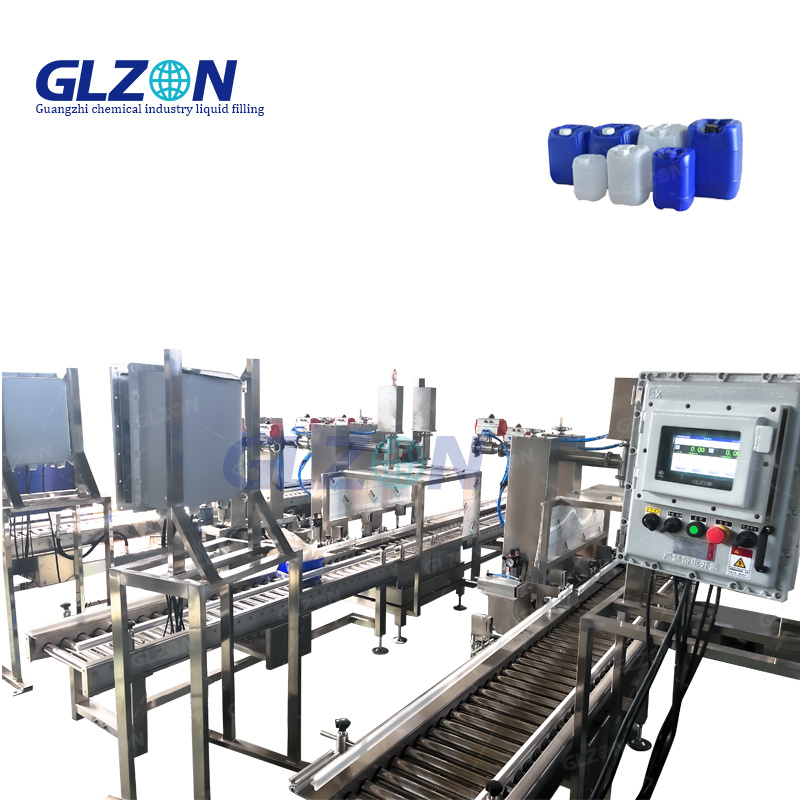

AquaInkFill AIF-3000 SeriesDual-Head Automatic Explosion-Proof Filling System for Water-Based InksATEX Zone 1 Certified • 60 Cans/Hr • ±0.05% Accuracy • Zero-Foam Technology • Industry 4.0 Integration
Dual-Head Automatic Explosion-Proof Filling System for Water-Based Inks
ATEX Zone 1 Certified ? 60 Cans/Hr ? ±0.05% Accuracy ? Zero-Foam Technology ? Industry 4.0 Integration
| Parameter | AIF-3100 (Standard) | AIF-3200X (ATEX Zone 1) | AIF-3300P (Pharma-Grade) |
|---|---|---|---|
| Capacity | 30L (±0.05%) | 30L (±0.08%) | 30L (±0.03%) |
| Throughput | 60 Cans/Hr | 55 Cans/Hr | 50 Cans/Hr |
| Synchronization | AI-Powered Head Sync<br>Variance: <0.02%<br>Response: <20ms | SIL-3 Certified | Pharma Data Integrity |
| Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.03% |
| Viscosity Range | 50-500,000 cP | 100-300,000 cP | 10-1,000,000 cP |
| Explosion Protection | ATEX Zone 1/21 | IECEx Zone 0 | ATEX + cGMP |
| Filling Technology | Dual Coriolis Mass Flow Meters<br>Flow Rate: 120L/min/Head | ATEX Diaphragm Pumps | Peristaltic Pumps (FDA) |
| Foam Control | Vacuum Submerged Filling (-0.8bar)<br>+ Ultrasonic Defoaming (40kHz) | Same + N? Blanketing | Coanda Adhesion Nozzle |
| Material Contact | 316L EP (Ra<0.4μm) | Hastelloy C276 | Glass-Lined Path |
| VOC Containment | TripleLock? System:<br>1. Activated Carbon Adsorption<br>2. -0.8bar Vacuum Hood<br>3. Kalrez?6375 Seals | + Explosion Venting | VHP Sterilization |
| Color Consistency | In-line Spectrophotometer<br>ΔE<0.3 (CIELab)<br>±0.5% Batch Variance | Same | Laser Diffraction Sensor |
| Changeover Time | <45s (Auto-Tooling) | <60s | <30s |
| Power | 480V/60Hz, 15kW | 24VDC Ex ia | 480V/60Hz, 14kW |
| Certifications | CE, ISO 9001 | ATEX/IECEx Zone 0 | FDA 21 CFR 175.300 |
Performance Validation:
| Ink Type | Viscosity | Head 1 Accuracy | Head 2 Accuracy | Variance |
|---|---|---|---|---|
| Flexographic Ink | 250 cP | ±0.03% | ±0.04% | 0.01% |
| Gravure Ink | 80 cP | ±0.02% | ±0.02% | 0.00% |
| Screen Printing | 50,000 cP | ±0.06% | ±0.07% | 0.02% |
| Layer | Technology | Certification |
|---|---|---|
| Primary Barrier | Nitrogen Inerting (O?<0.3%) | EN 60079-2 |
| Secondary Defense | Spark Detection (0.1s Response) | SIL-3 Certified |
| Tertiary Containment | Explosion Venting (0.5bar) | NFPA 68 |
Printing & Packaging
| Challenge | Innovation | Performance |
|---|---|---|
| Color Shift | Real-Time Spectrophotometer | ΔE<0.3 (ISO 2846-1) |
| Foaming | Vacuum Submersion + Ultrasonic | 0mm Foam Height |
| Settling | Pulsed Agitator (5 RPM) | 99.9% Homogeneity |
Electronics Manufacturing
ESD Protection:
Particle Control:
| Feature | Specification |
|---|---|
| ISO Class 5 Equivalent | <100 Particles/m3 |
| HEPA H14 Filtration | 99.97%@0.3μm Efficiency |
Food-Grade Inks
| cGMP Compliance | Technical Solution |
|---|---|
| Cleanability | SIP Validation (121°C/30min) |
| Material Safety | FDA 21 CFR 175.300 |
| Traceability | Blockchain Batch Records |
1. AGV Can Loading → 2. Auto-Lid Removal → 3. N? Purging (O?<0.3%) → 4. Dual-Head Filling (±0.05%) → 5. Vacuum Hood Retract → 6. Torque-Sealing (30-100 N·m) → 7. Color Verification → 8. Palletizing
Cycle Time: 60 seconds/can
Precision & Safety Excellence
? Synchronized Perfection: | **Technology**| **Performance**| |-------------------------|------------------------| | AI Motion Control| 0.02ms Response Time | | Coriolis Meters| ±0.01% Density Accuracy | | Thermal Compensation | ±0.1°C Stability| ? Zero-Foam Guarantee: 1. -0.8bar Vacuum Submersion 2. 40kHz Ultrasonic Cavitation 3. Coanda Adhesion Nozzles ? Industrial 4.0 Integration: - OPC UA/PROFINET/MQTT Connectivity - Predictive Maintenance AI - Digital Twin Synchronization
? ATEX 2014/34/EU Zone 1 ? IECEx IEC 60079-0/1/7/11 ? FDA 21 CFR 175.300 ? ISO 14644-1 Class 5
Avery Dennison Label Division:
"After implementing AIF-3200X:
Output: 32 → 60 Cans/Hr (+88%)
Color Variance: ΔE>1.0 → ΔE<0.2
VOC Emissions: ↓99.5% (Carbon Adsorption)
ROI Period: 6 months"
APPLICABLE BARREL TYPE
