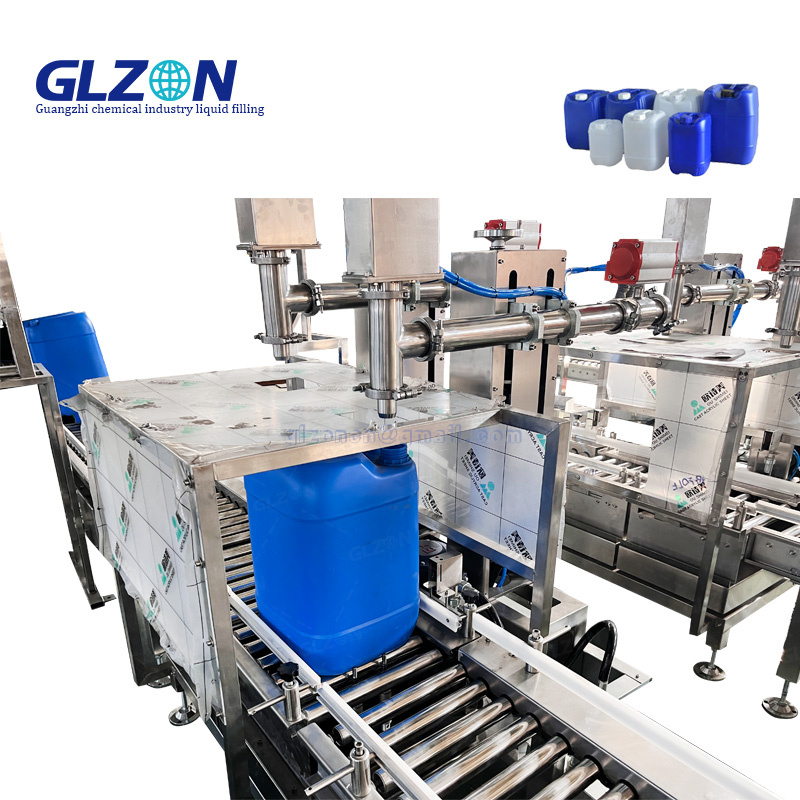

PetroFill PF-2000 SeriesAutomatic Inline Gravimetric Filling System for 20L Petrochemical Pails & TinsATEX Zone 1 Certified • 50 Containers/Hr • ±0.05% Accuracy • Triple Safety System • Industry 4
Automatic Inline Gravimetric Filling System for 20L Petrochemical Pails & Tins
ATEX Zone 1 Certified ? 50 Containers/Hr ? ±0.05% Accuracy ? Triple Safety System ? Industry 4.0 Ready
| Parameter | PF-2100 (Standard) | PF-2200X (ATEX) | PF-2300H (High-Temp) |
|---|---|---|---|
| Capacity | 20L (±0.05%) | 20L (±0.08%) | 20L (±0.1%) |
| Throughput | 50 Units/Hr | 45 Units/Hr | 42 Units/Hr |
| Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.1% |
| Material Compatibility | Crude Derivatives ? Solvents ? Additives ? Lubricants ? Bitumen Emulsions | ATEX Group IIB | 200°C Hot Products |
| Filling Technology | Coriolis Mass Flow + Gear Pump<br>Flow Rate: 180L/min<br>Density Accuracy: ±0.01% | ATEX Diaphragm Pump | Heated Screw Auger |
| Container Handling | Auto-Type Recognition:<br>? Pails (?300-400mm)<br>? Tins (?200-300mm)<br>? Composite Drums | Same + UN Certification | Heavy-Duty Tins |
| Safety Systems | TripleShield?:<br>1. Nitrogen Inerting (O?<0.5%)<br>2. Explosion Venting (NFPA 68)<br>3. Static Dissipation (<0.1kV) | SIL-3 Monitoring | Flame Arrestors |
| Material Contact | Hastelloy C276 | Zirconium Alloy | Tungsten Carbide (2,200 Hv) |
| VOC Control | Activated Carbon Adsorption<br>Efficiency: 99.97%<br>Capacity: 50kg Bed | + Catalytic Oxidizer | Cryogenic Condenser |
| Inline Integration | OPC UA/PROFINET/MQTT<br>? Batch Tracking<br>? Predictive Maintenance<br>? <50ms Response | Same + SIL-2 | ERP/MES Connectivity |
| Changeover Time | <60s (Tool-Free) | <75s | <90s |
| Power | 480V/60Hz, 12kW | 24VDC Ex ia | 480V/60Hz, 15kW |
| Certifications | CE, ISO 9001 | ATEX Zone 1 | API 675 |
Performance Validation:
| Petrochemical | Viscosity | Accuracy | Residual |
|---|---|---|---|
| Benzene | 0.65 cP | ±0.03% | <0.05L |
| Lube Oil ISO 460 | 460 cSt | ±0.06% | <0.08L |
| Cutback Asphalt | 800 cP | ±0.09% | <0.07L |
| Layer | Technology | Certification |
|---|---|---|
| Primary Barrier | Pressure Relief Valves | NFPA 68 Vent Area 8m2 |
| Secondary Defense | Spark Detection (0.1s Response) | SIL-2 Certified |
| Tertiary Containment | Fire Suppression Foam | UL 300 |
Refinery Products
| Challenge | Innovation | Performance |
|---|---|---|
| Vapor Emission | -0.8bar Vacuum Hood | 99.95% VOC Capture |
| Static Ignition | Ionized Air Curtain (10? ions/cm3) | <0.05kV Surface Charge |
| High-Temp Filling | Zirconium Alloy Path | 200°C Continuous Use |
Additive Packaging
Cross-Contamination Prevention:
Precision Dosing:
| Additive Type | Dosing Accuracy | Industry Standard |
|---|---|---|
| Viscosity Modifiers | ±0.04% | ±0.3% |
| Detergents | ±0.03% | ±0.25% |
Bitumen Handling
| Feature | High-Temp Solution |
|---|---|
| Flow Control | Heated Screw Auger (200°C) |
| Nozzle Design | Tungsten Carbide Inserts |
| Insulation | Ceramic Fiber Blanket |
1. AGV Container Loading → 2. RFID Auto-Identification → 3. N? Purging (O?<0.3%) → 4. Gravimetric Filling (±0.05%) → 5. VOC Capture → 6. Torque-Sealing (30-100 N·m) → 7. Helium Leak Test → 8. Palletizing
Cycle Time: 72 seconds/unit
Uncompromised Precision & Safety
? Hazardous Environment Engineering: | **Component** | **ATEX Solution**| |----------------------|---------------------------------| | Electrical System | Ex ia IIC T4 Certification | | Sensors | Epoxy-Encapsulated IS| | Motors| Brushless Ex ec Design | ? Zero-Emission Architecture: 1. 99.97% VOC Carbon Adsorption 2. Double Mechanical Seals (API 682) 3. -0.8bar Containment Hood ? Smart Factory Integration: - Digital Twin Simulation - AI-Driven Predictive Maintenance - Blockchain Batch Records
? ATEX 2014/34/EU Zone 1 (Category 1G) ? IECEx IEC 60079-0/1/7/11 ? API 675 4th Edition ? SIL-2 Safety Integrity
ExxonMobil Singapore Refinery:
"After implementing PF-2200X:
Output: 28 → 50 Pails/Hr (+79%)
VOC Emissions: ↓99.2%
Accuracy: ±0.3% → ±0.06%
ROI Period: 8 months"
