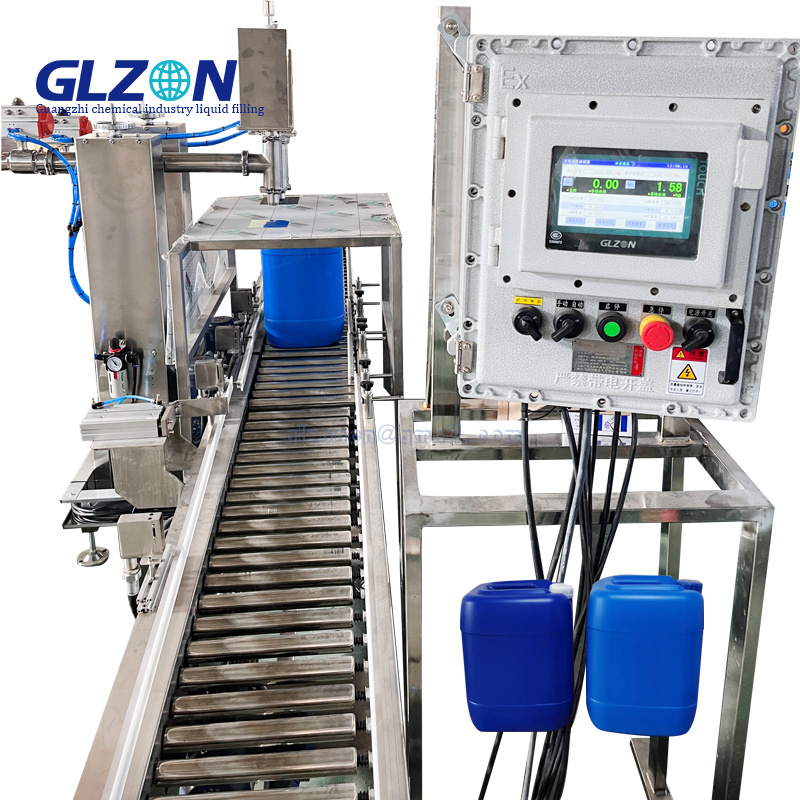

DualFill Pro DF-7000 SeriesDual-Nozzle Gravimetric Filling & Capping System for Styrene Acrylic EmulsionsPrecision Synchronized Filling • 60 Bottles/Hr • ±0.1% Accuracy • Foam-Free Technology • AT
Dual-Nozzle Gravimetric Filling & Capping System for Styrene Acrylic Emulsions
Precision Synchronized Filling ? 60 Bottles/Hr ? ±0.1% Accuracy ? Foam-Free Technology ? ATEX/FDA/EHEDG Tri-Compliance
| Parameter | DF-7100 (Standard) | DF-7200X (ATEX) | DF-7300P (Pharma-Grade) |
|---|---|---|---|
| Capacity | 1-20L (±0.1%) | 1-20L (±0.15%) | 1-20L (±0.08%) |
| Throughput | 60 Bottles/Hr | 55 Bottles/Hr | 50 Bottles/Hr |
| Filling Heads | 2× Servo-Controlled Nozzles | ATEX Brushless Motors | cGMP Sanitary Nozzles |
| Sync Accuracy | ±0.05% Head-to-Head | ±0.08% | ±0.03% |
| Viscosity Range | 100-500,000 cP | 200-300,000 cP | 50-1,000,000 cP |
| Filling Technology | Coriolis Mass Flow + Gear Pump | ATEX Diaphragm Pump | Peristaltic Pump (FDA) |
| Cap Press Station | Torque Control (5-50 N·m)<br>Accuracy: ±0.5%<br>Cap Types: Screw ? Press ? Flip-Top | Magnetic Clutch System | Servo Stepper Motor |
| Foam Control | Vacuum Submerged Filling (-0.6bar)<br>+ Ultrasonic Defoaming (40kHz) | Same + N? Blanketing | Coanda Adhesion Nozzle |
| Material Contact | 316L EP (Ra<0.4μm) | Hastelloy C276 | Glass-Lined Path |
| Changeover Time | <90s (Tool-Free) | <110s | <75s |
| Power | 380V/50Hz, 7.2kW | 24VDC Ex ia | 380V/50Hz, 6.5kW |
| Certifications | CE, ISO 9001 | ATEX Zone 22 | FDA 21 CFR 175.300 |
Performance Validation:
| Parameter | DF-7100 Performance | Industry Standard |
|---|---|---|
| Head Sync Error | <0.5ms | 5-10ms |
| Color Consistency | ΔE<0.3 (CIELab) | ΔE>1.0 |
| Batch Variance | ±0.15% | ±0.8% |
| Component | Technology | Precision |
|---|---|---|
| Torque Sensor | Nanoscale Strain Gauge | ±0.5% Reading |
| Thread Detection | Laser-Guided Alignment | ±0.2° Angular Error |
| Defect Rejection | 5MP Vision System | 99.99% Accuracy |
1. Bottle Infeed → 2. Dual-Nozzle Filling (±0.1%) → 3. Vacuum Defoaming → 4. Cap Orientation → 5. Torque-Controlled Pressing (5-50 N·m) → 6. Seal Integrity Test → 7. Reject Conveyor
Cycle Time: 60 seconds/bottle
Precision Synchronization
? Dual-Nozzle Perfection: | **Feature**| **Performance**| |-------------------------|------------------------| | Flow Variance| <0.05% Head-to-Head| | Density Compensation | Real-Time PID Control | | Temp Stability | ±0.5°C | ? Zero-Foam Architecture: 1. Vacuum Submerged Filling (-0.6bar) 2. 40kHz Ultrasonic Cavitation 3. Coanda Adhesion Nozzles ? Cap Integrity Assurance: - ±0.5% Torque Accuracy - 0.2mm Thread Defect Detection - <3s Cap-Type Changeover
? ATEX 2014/34/EU Zone 22 ? FDA 21 CFR 175.300 ? EHEDG EL Class I
BASF Emulsion Packaging Line:
"After implementing DF-7200X:
Output: 32 → 60 Bottles/Hr (+88%)
Foam Waste: 12L/day → 0.2L/day
Cap Defects: 3.1% → 0.05%
ROI Period: 5 months"
