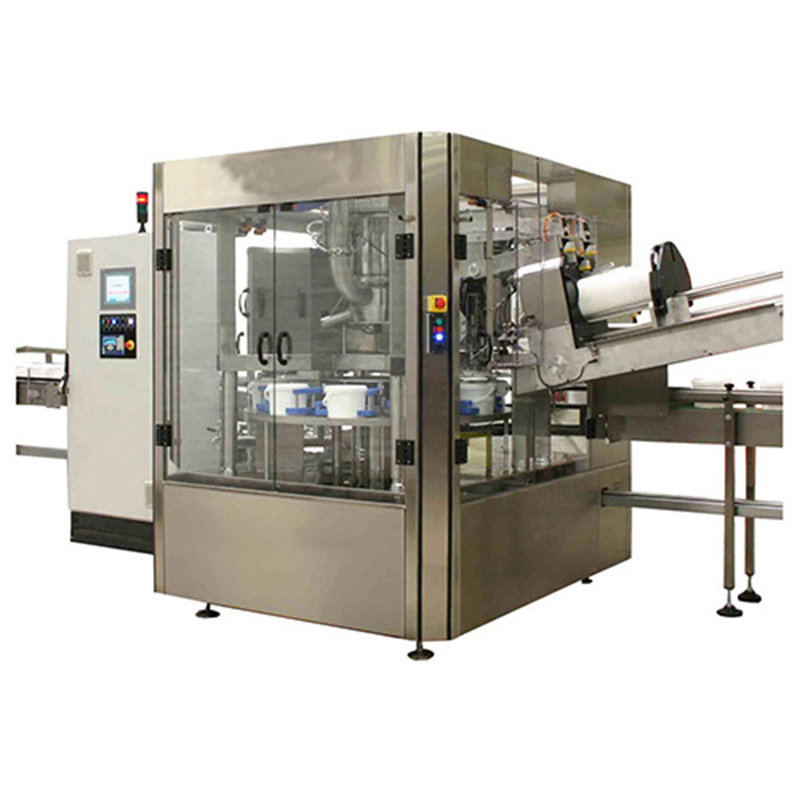

10L Anti Corrosion Toilet Cleaner Deodorant Strong Acid Filling Machine
Shanghai Guangzhi’s 10L Filler handles strong acids (pH 0-3) & deodorants. ±0.2% accuracy, vapor recovery & Ex-proof. FDA/REACH compliant.
- Brand： glzon
- Model： GZM_10L
Product Essence: Defying Corrosion, Delivering Precision
Shanghai Guangzhi Automation’s 10L Anti-Corrosion Filling Machine masters the packaging of pH 0-3 toilet cleaners, deodorants, and bleach solutions. Engineered with fluoropolymer-sealed components, negative-pressure filling, and ATEX Zone 1 compliance, it achieves ±0.2% accuracy at 25 bottles/hour while neutralizing operator exposure and environmental risks.
Core Technology Innovations
1. Triple-Barrier Corrosion Defense
Fluoropolymer Contact Surfaces:
PTFE/PFA-coated pistons & nozzles
Kalrez? seals (chemically inert to HCl/H?SO?)
Hastelloy C276 Sensors: Resists pitting up to 10% chlorides
Vapor-Phase Protection: Nitrogen blanket + fume extraction (99.5% capture)
2. Hazard-Controlled Filling
Negative-Pressure Filling: Prevents acid mist release during transfer
Static Dissipation: Conductive pathways (<10? Ω) prevent sparking
SIL2 Safety PLC: Auto-shutdown on:
pH sensor deviation
Vapor concentration >25% LEL
3. Rapid Product Changeover
CIP/SIP System:
Acid-neutralizing wash (NaOH citric cycle)
<8 min cleaning validation (ISO 15883)
Tool-Free Format Change: <3 min for bottle sizes (?80-150mm)
Technical Specifications
| Parameter | Specification |
|---|---|
| Filling Range | 1-10L (±0.2%) |
| Acid Compatibility | pH 0-3 (HCl, H?SO?, oxalic acid) |
| Viscosity Range | 1-5,000 cP (gels to thin liquids) |
| Throughput | 25 bottles/hour |
| Bottle Types | HDPE/PET with vented caps |
| Power Supply | 220V/50Hz, 3.7kW |
| Vapor Recovery | ≥99.5% (OSHA 1910.1200 compliant) |
| ATEX Certification | Zone 1 (Ex d IIC T1) |
| Footprint (L×W×H) | 2000×1200×2100mm |
Chemical-Specific Engineering
| Product Challenge | Guangzhi Solution |
|---|---|
| Hydrochloric Acid (10-30%) | Glass-lined filling nozzles |
| Bleach Solutions | Titanium alloy sensors (Cl? resistance) |
| Gel Cleaners | Helical screw fillers + deaeration |
Safety & Compliance Ecosystem
Active Hazard Mitigation
Acid Mist Sensors: Laser detection (≥5ppm alarm)
Emergency Drench System: Integrated eye/shower station
Double-Wall Containment: Secondary spill tray (200L capacity)
Global Certifications
ATEX 2014/34/EU (Zone 1)
FDA 21 CFR 177.2600 (Food-contact surfaces)
REACH SVHC compliance (Phthalate-free seals)
Operational Efficiency
Unilever Supplier Case (UK):
Challenge: 12% filler corrosion in 6 months with pH 1.2 toilet cleaner
Solution: Fluoropolymer-coated filler with vapor recovery
Results:
? Zero corrosion damage in 18 months
? 99.8% fill accuracy
? ROI in 10 months
Smart Control & Integration
10" Chem-Resistant HMI
Real-time pH/viscosity monitoring
Recipe-driven parameter presets (50+ formulations)
Predictive maintenance dashboard
Industry 4.0 Connectivity
OPC UA integration with SCADA/MES
Blockchain batch tracing (ingredient provenance)
Remote diagnostics via VPN-secured IIoT
Global Support & Upgrades
Critical Upgrades
| Option | Function |
|---|---|
| Aseptic Cold Fill | ISO Class 5 cleanroom compatibility |
| X-Ray Fill Inspection | Detects voids/particles in gels |
| Robotic Capping | Torque-controlled acid-resistant caps |
Warrior-Grade Service
24/7 Chemical Response Team: On-site within 72h globally
Corrosion-Resistant Spares Kit:
PTFE-coated pistons
Hastelloy C276 valves
