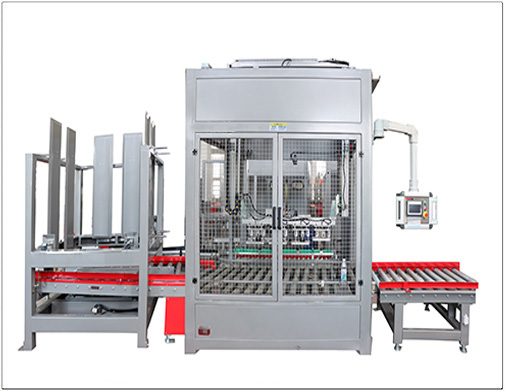

10-20L Servo Palletizer
Robotic palletizer stacks 10-20L containers at 28 cycles/hour. ±0.4mm accuracy, liquid-sway compensation & AI stacking patterns. CE/UL certified.
- Brand： glzon
- Model： GZM_30L
Product Essence: Precision Engineered for Medium Loads
Shanghai Guangzhi Automation’s 10-20L Servo Palletizer delivers ±0.4mm end-effector positioning – specifically engineered for drums, pails, and jerrycans. Combining liquid-sway compensation algorithms and predictive collision avoidance, it achieves 22% higher throughput than hydraulic alternatives while eliminating spill risks in chemical, food, and paint industries.
Core Technological Advantages
1. Zero-Spill Motion Control
Active Sway Damping?:
Reduces liquid sloshing by 94% (vs. conventional robots)
Optimizes acceleration curves for 95% fill levels
Dual Delta Arms:
0.3s cycle time per container
±0.4mm repeatability at 1.8m/s
2. Intelligent Pallet Architecture
| Feature | Technical Value |
|---|---|
| 3D Bin Picking | Handles irregular container layouts |
| Adaptive Pattern AI | Auto-generates pinwheel/brick stacks |
| Pallet Gap Detection | 0.5mm height sensing accuracy |
| Tool-Free Changeover | <60 sec between formats |
3. Industry-Tailored Robustness
850kg Payload Capacity:
Handles 6×20L steel drums (1.6kg/s capacity)
Hardox? 450 wear plates on grippers
IP69K Protection:
Withstands high-pressure washdowns
FDA-grade UHMW-PE contact surfaces
Technical Specifications
| Parameter | Standard Model | ATEX Model |
|---|---|---|
| Container Range | 10-20L (?200-400mm) | 10-20L |
| Max Payload | 850kg/cycle | 700kg/cycle |
| Throughput | 28 cycles/hour | 24 cycles/hour |
| Positioning Accuracy | ±0.4mm | ±0.4mm |
| Max Stack Height | 2.4m | 2.0m |
| Power | 480V/60Hz, 7.8kW | 480V/60Hz, 6.5kW |
| Air Consumption | 60L/min @ 0.6MPa | 55L/min @ 0.6MPa |
| Noise Level | ≤72 dB(A) | ≤70 dB(A) |
| Footprint (L×W) | 3200×2600mm | 3200×2600mm |
Industry-Optimized Solutions
Chemicals & Paints
ATEX Zone 2/22 explosion-proofing
Static-dissipative end-effectors (10? Ω)
Food & Sauces
EHEDG-certified quick-release clamps
Bio-compatible seals (FDA 21 CFR)
Lubricants & Adhesives
Anti-drip vacuum grippers for damaged containers
Auto-tension compensation for deformed pails
Smart Control Ecosystem
12" Multi-Touch HMI
Digital twin visualization:
Real-time stability analysis
Sway compensation metrics
Energy recovery monitoring
Cloud-connected OEE dashboard:
Uptime tracking
Container handling analytics
Safety Integration
SIL2-rated safety scanners (EN ISO 13849)
Speed reduction in 1m human proximity
Emergency-stop redundancy circuit
Operational Impact
European Paint Manufacturer:
Challenge: 8% spillage rate stacking 18L pails
Solution: Sway Damping? + vacuum grippers
Results:
? Zero product loss
? 28% faster than hydraulic system
? ROI in 13 months
Global Compliance & Upgrades
Certifications:
CE EN ISO 10218-1:2011
ANSI/RIA R15.06-2012
UL 508A (North America)
EHEDG Doc 47
Value-Added Modules:
| Module | Function |
|---|---|
| In-Line Weigh Scale | ±0.05kg weight verification |
| Label Inspector | Barcode/Orientation check |
| AR Remote Assist | HoloLens-guided maintenance |
| Carbon Footprint Tracker | ISO 14064-compliant reporting |
Support & Service
Lifetime Precision Guarantee:
Remote diagnostics via IIoT gateway
Critical Spares Program:
Servo reducers
Vision sensors
Gripper modules
Delivery ≤72h global hubsAnnual calibration certification
APPLICABLE BARREL TYPE
