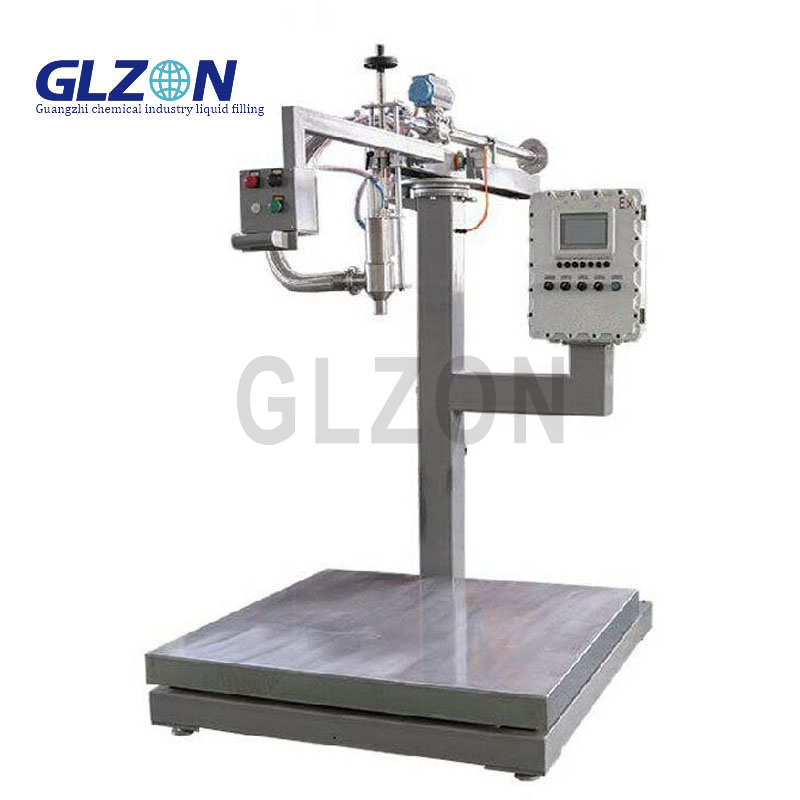

1000L Automatic Swing Arm IBC Chemical Liquid Filling Machine
Shanghai Guangzhi’s 1000L IBC Filler achieves ±0.1% accuracy for acids/solvents. Swing arm design, Ex-proof construction & vapor recovery. SIL2 PLC control.
- Brand： glzon
- Model： GZM_1000L
Product Essence: Precision Meets Chemical Safety
Shanghai Guangzhi Automation’s 1000L Swing Arm IBC Filler revolutionizes hazardous liquid handling – filling acids, solvents, and VOC chemicals into IBC totes with ±0.1% accuracy. Featuring robotic swing arm technology, ATEX Zone 1 certification, and closed-loop vapor recovery, it delivers 12-15 totes/hour while eliminating spillage and operator exposure risks.
Core Technology Highlights
1. Robotic Swing Arm Precision
6-Axis Articulated Arm: Positions nozzles within ±0.5mm (ISO 9283)
Auto Tote Alignment: LiDAR scans IBC flange for hermetic seal
Viscosity Adaptation: 1-100,000 cP range (sulfuric acid to polymer resins)
2. Hazardous Environment Safety
ATEX Zone 1 Certified:
Ex d IIC T4 pressurized panels
Intrinsically safe sensors (Ex ia)
Zero Emission Design:
Dual-seal vapor recovery (99.9% capture)
Nitrogen inerting (O? <0.1%)
3. Smart Chemical Management
Corrosion Defense:
PTFE-coated nozzles
Hastelloy C276 flow sensors
SIL2 PLC Control:
Real-time leak detection
Auto-shutdown on deviation
Technical Specifications
| Parameter | Specification |
|---|---|
| Filling Range | 500-1000L (±0.1%) |
| Filling Speed | 100-150 L/min |
| Viscosity Range | 1-100,000 cP |
| Accuracy | ±0.1% (mass flow meter) |
| IBC Compatibility | 1000L (1165×1165×1200mm) |
| Power Supply | 400V/50Hz, 7.5kW |
| Vapor Recovery | ≥99.9% (EPA Method 21 compliant) |
| SIL Level | SIL2 (IEC 61508) |
| Footprint (L×W×H) | 3500×3000×2500mm |
Chemical-Specific Engineering
| Chemical Category | Specialized Feature |
|---|---|
| Acids (H?SO?/HCl) | Ceramic-lined hoses |
| VOC Solvents | Carbon adsorption vapor recovery |
| Peroxides | Static dissipative fill heads |
| Polymer Resins | Heated jackets (40-80°C) |
Operational Impact
BASF Supplier Case (Germany):
Challenge: Toluene filling spills causing Zone 0 exposure
Solution: ATEX swing arm filler with vapor recovery
Results:
? Zero solvent emissions
? ±0.08% filling accuracy
? ROI in 14 months
Global Compliance & Support
Certifications:
ATEX 2014/34/EU (Zone 1)
IECEx IEC 60079-0/1
ASME BPE-2022
ISO 15883 (Cleaning validation)
Critical Options:
Aseptic Kit: ISO Class 5 cleanroom compatibility
CIP/SIP System: Auto-cleaning in <25 mins
Earthquake Resistant: Seismic Zone 4 compliance
24/7 Global Response:
Ex-proof spare kits (nozzles/sensors)
Remote SIL diagnostics via VPN
On-site support ≤72h
