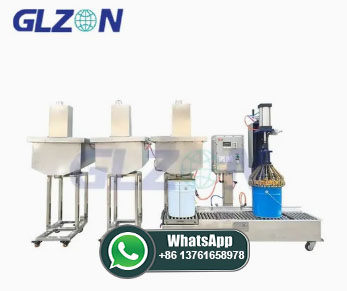

    1-10L Fully Automatic Storage Line for Glues with Double-Head



                            2025-04-29 14:53:29
                            glzon










    Fully Automatic Storage Line
    Basic Info.
    Model NO.
    GZM-10AUTOCL-2PT
    Type
    Weighing-type Filling Machine
    Automatic Grade
    Fully Automatic
    Material Type
    Liquid
    Filling Valve Head
    Multi-Head
    Feed Cylinder Structure
    Multi-Room Feeding
    Dosing Device
    Capacity Cup
    Filling Principle
    Pressure
    Packaging Container Lifting Structure
    Pneumatic Lifting
    Structure
    Linear
    Packaging
    Barrel
    Packaging Material
    Wood
    Application
    Food, Beverages, Daily Necessities, Chemicals
    Applicable Industries
    Hotels, Manufacturing Plants, Food and Beverage
    Core Components
    Pressure Vessels, Pumps, Plcs, Gears, Bearings
    Barrel Form
    Pail, Can, Bottle etc.
    Transport Package
    Wooden Cases
    Specification
    3900*1000*1700mm
    Trademark
    GLZON
    Origin
    Shanghai, China
    Product Description

    1-10L Fully Automatic Storage Line for Glues with Double-Head
    1-10L Fully Automatic Storage Line for Glues with Double-Head
    Product Description
    Introduction
    Liquid filling line is a highly automated packaging equipment, whose main function is to automatically fill liquid materials into predetermined weights. The liquid filling machine can effectively prevent material overflow during the filling process, effectively prevent material pollution to the environment, and provide effective labor protection for operators. Its system works stably and reliably, with simple operation and precise filling. The filling machine mainly consists of a filling gun device, PLC system control part, weighing system, filling rack, conveying equipment, etc.
    1-10L Fully Automatic Storage Line for Glues with Double-Head
    1-10L Fully Automatic Storage Line for Glues with Double-Head
    Product Features
    1.For the filling of square barrels and drums below 100kg, the system adopts programmable PLC control, with full Chinese guid- ance and easy operation;
    2.The filling head extends into the barrel mouth and automatical- ly exits when filling is completed. If the filling head is not aligned with the barrel mouth, it will automatically return;
    3.The filling gun is made with integral technology to prevent dripping and splashing; the quick-release connector is easy to disassemble and clean;
    4.The system target value can be set freely, and the height of the filling gun is adjustable, suitable for rapid filling of packaging barrels of various specifications;
    5.Equipped with a large and small ball width group and a double-stage filling gun, the four-stage filling design of large, medium, small and trace quantities makes filling more accurate;
    6.Filling is prohibited without a bucket on the weighing platform, and differential pressure zero-time bucket collision protection is provided;
    7.Net weight/gross weight (automatic tare for each barrel) Two filling methods are automatically selected;
    8.One-click operation, easy to use; multiple windows display filling volume, number of barrels, cumulative volume and other information;
    9.There is a signal indicator light for real-time display, and an automatic alarm if the deviation is exceeded;
    10.It has good stability,reduces losses,saves costs,improves operating efficiency and reduces manual operation pressure.
    Product Parameters
    1-10L Fully Automatic Storage Line for Glues with Double-Head
    Product Parameters
    ModelGZM-10AUTOCL-2PT
    Filling range10-60kg
    PowerAC220V±10%50hz
    Air source0.5mpa
    Explosion-proofEXIDIIRT6
    Filling accuracy0.02%
    Speed(can/min)6-10 barrels (1000L)
    Filling station2
    Materialsus304/316
    Installation Instructions
    Main structure and working principle

    1.Computer quantitative filling machine has feeding system, weighing system frame pneumatic control control system without power raceway and so on.

    2.Feeding mode: the requirement of continuous and stable feeding (feeding pump pressurized feeding) feeding mechanism by solenoid valve through the cylinder to perform fast and slow feeding.

    3.Filling method: ordinary conventional filling and lifting and diving filling (according to the needs of the order to choose).

    4.The weighing platform is equipped with unpowered roller and frame support and filling system pneumatic control system: control fast and slow feeding valve in the process of using the weighing platform is not allowed to be subjected to additional external forces.
    1-10L Fully Automatic Storage Line for Glues with Double-Head
    How to operate

    1.Manually place the bucket on the weighing platform to quickly locate the counterpart - the system automatically detects the bucket position and fills the gun.

    2.Automatically insert into the bucket mouth - automatically peel - automatically open the filling gun and ball valve group to start filling.

    3.Loading---four-stage filling of large, medium, small and trace quantities---reach the target value---filling gun.

    4.Automatically close and rise outside the barrel---manually move to the lid lock area---press the [Lock lid] button
    Pneumatic locking cover---manual palletizing.

    Company Profile
    Company Profile
    Shanghai Guangzhi Automation Equipment Co., Ltd. is a professional production and sales of packaging machine, filling machine factory, our company is located in Shanghai Songjiang Industrial Zone, covers an area of 5000 square meters, adjacent to the G60 science and innovation corridor, has rich industry experience, excellent human resources, excellent technical ability.
    Since its establishment in 2010, our company has been committed to R & D, design, production to make customers more satisfied with the products, to provide quality after-sales service system, in the continuous efforts of all staff, our equipment is not only in the country chemical, construction and other industries have made achievements, but also exported to 49 countries around the world, and set up agents in South America, East Asia, Africa, more with the world.

    1-10L Fully Automatic Storage Line for Glues with Double-Head
    Our Advantages
    1-10L Fully Automatic Storage Line for Glues with Double-Head
    Why choose us

    1. Packaging solution.
    We provide professional packaging and logistic service for your option. With plenty of experience and     carefully treatment, we make sure the machinery delivery to you is good useful.

    2. Pre-sale Service.
    Pre-sale service will provide     by our sales engineers and electrical engineers. offering complete bundle of packaging solutions and professional rationalization proposals and pre-sale testes.

    3. After-sale service.
    We provide free parts and parts delivery, when manufacture defects has been     detected during normal operation(vulnerable parts not included)under warranty period(one-year warranty )as well as after-sale service of low cost.

    Free training course will be given to your technician at our factory site in Shanghai China.
    Certifications
    1-10L Fully Automatic Storage Line for Glues with Double-Head
    FAQ
    Q1: Are you manufacturer?
    A: Yes. We have more than 10 years of manufacturing and exporting experience. We are proud to be the first batch of Chinese manufacturers devoted in large format printers.

    Q2: How to buy?
    A: Simply contact our sales expert and inform your demands, request for a Proforma Invoice. The order will be shipped after the invoice get paid.

    Q3: How can I trust you?
    A: Always warmly welcome for visiting our factory. Or have video call. Or arrange any of your friend to come and help you check your goods. Or place order through ****** Trade Assurance Order. Or any other good idea you can feel free to inform. We will do our best to cooperate. We are serious supplier in this industry for long time. You can always rely on us.

    Q4: How to send goods to my place?
    A: We have regular reliable forwarder agent, can send goods to you by sea, by air, by DHL Express, or if you have agent, we can send to their warehouse in China.
    And if you want to combine our products with other items you bought from other supplier, we would also be happy to help.
    If you are new for importing, feel free to contact us. We will help check the most suitable transportation method for you.

    Q5: How is your warranty?
    A: 12 months trouble-free warranty. During warranty period, electric parts are covered with warranty. Users send back defective parts and we send the new one for replacement. Warranty can be up to 3 years if you apply for the warranty extending plan. For more information, please feel free to contact our sales people.

    Q6: How is your technical support?
    A: We provide 12 months trouble-free warranty and lifetime online support through Whatsapp/ Skype/ Wechat/ Email / Remote Assistant- Teamviewer.
    From Monday to Sunday, 9am to 9pm. No need to worry about the technical support due to time difference.
    Onsite support also available.
    Packaging & Shipping
    Shipping Scenario and Component Brand

    1-10L Fully Automatic Storage Line for Glues with Double-Head
    1-10L Fully Automatic Storage Line for Glues with Double-Head
    Special note

    Note: Our company reserves the right to update product designs and speci?cations at any time. The product information description on this page does not constitute any guarantee or commitment, and is not regarded as a product or service contract term.
