High Efficiency Automatic Ketchup Sauce Filling Machine Line
| ? The system adopts programmable PLC control, and the operation isguided by Chinese language, which is safe and reliable. |
| ? Manual barrel loading, automatic filling, automatic conveying, manual capping, automatic positioning, easy to disassemble and wash |
| ? The filling gun is manufactured with an integral process to prevent dripping and splashing; the quick-release connector is easy to disassemble and clean. |
| ? The system target value can be set freely, and the height of the filling gun is adjustable, suitable for rapid filling of packaging barrels of various specifications. |
| ? Good stability, reduce losses, save costs, improve operating efficiency, and reduce manual operation pressure. |
Features
Designed for Submersed Use Below Liquid Level
Ideal type, crafted for 200L single barrel filling; uniquely designed, adjustable pneumatic ball valve and
Our innovative spray valve not only accelerates grain processing but also ensures remarkable accuracy; furthermore, it can
Significantly reduce the dripping of residual liquid after filling completion; an integrated air collection hood skillfully prevents
The release of volatile gases during installation, effectively ensuring the safety of operators.
How to Operate
During operation, simply install the empty barrel on the designated pipeline. It will automatically halt and the
Ingenious nozzle device automatically aligns the empty barrel precisely under the nozzle; the nozzle valve seamlessly descends into the
Upon entry into the barrel mouth, the empty barrel is automatically tared. The specific gravity is then measured accurately at two speeds.
Once bundled, the spray valve expertly connects to the exterior of the barrel, enters the full barrel pipeline, and arrives at the capping station.
The piping machine ceases operation, allowing for manual cap placement. The capping machine is then engaged, completing the capping process and weight measurement.

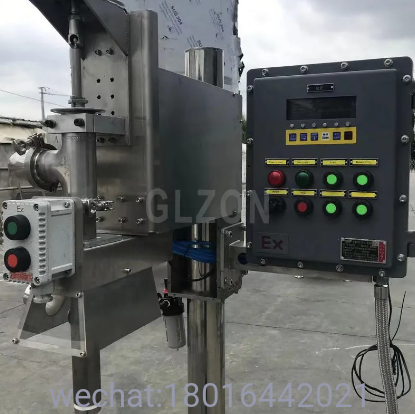

Touch Screen PLC Control
Featuring a responsive touch screen, PLC with C3 level load cell, dual 6-bit high-precision weighing controller (sampling speed up to 128 times/second), and a frequency converter for unmatched filling quality and precision.

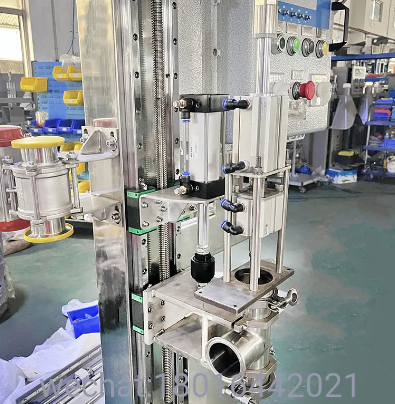

Pneumatic Filling
With computer-based weighing, submersible filling, and three-speed frequency conversion adjustment, the filling volume can be easily set, ensuring hassle-free operation and enhanced accuracy with gap compensation functionality.
